IP68 waterproof 280KG electromagnetic lock, outdoor gate-ready, 12V/24VDC.

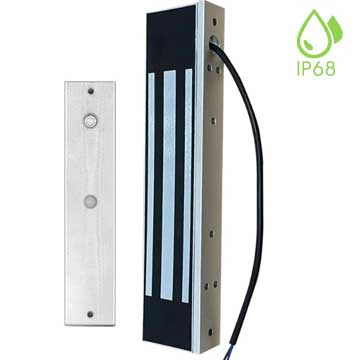

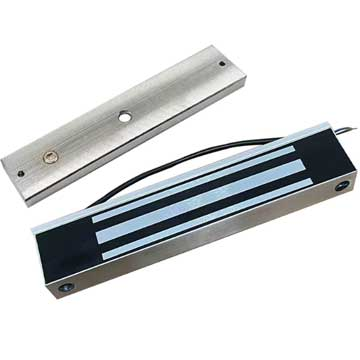

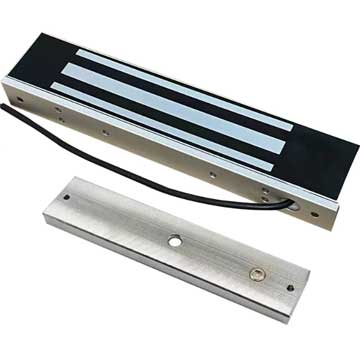

The S4A EL-W600 is a fully sealed IP68 waterproof electromagnetic lock delivering 280KG (600LBS) holding force. Engineered for outdoor gates and perimeter swing gates.
verified
280KG / 600LBS
verified
IP68 Waterproof
verified
Outdoor Gates
KES 8,700.00
KES 10,000.00
local_offer
Save KES 1,300
today
KES 0
(KES 8,700 × 1)
local_offer
Total saved: KES 0
1 Year Manufacturer Warranty
Product Overview
The S4A EL-W600 is an IP68-rated waterproof electromagnetic lock designed specifically for outdoor gates, perimeter fencing, and environments exposed to rain. It delivers 280KG (600LBS) of holding force, supporting dual-voltage configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 2 |
| Shipping Weight | 2.2 |
| Lock Type | single |
| Holding Force Kg | 280 |
| Holding Force Lbs | 600 |
| Holding Force Text | 280KG (600LBS) |
| Lock Dimensions | 222Lx48Wx25H(mm) |
| Armature Dimensions | 180Lx38Wx13H(mm) |
| Operating Voltage | 12V/24VDC |
| Current Draw | 12V/500mA, 24V/250mA |
| Signal Output | None |
| Led Indicator | No |
| Door Status Sensor | No |
| Time Delay | None |
| Suitable For | Wooden door, Glass door, Metal door, Fireproof door, Outdoor Gates |
| Bracket Compatibility | L-Bracket, U-Bracket, ZL-Bracket |
| Operating Temperature | -20°C ~ 55°C (-4°F ~ 131°F) |
| Surface Temperature | ≤ 20°C |
| Suitable Humidity | 0~90% (non-condensing) |
| Ip Rating | IP68 |
| Shell Material | Anodized aluminum |
| Magnetic Material | Zinc |
| Armature Material | Zinc |
