270KG door handle electromagnetic lock, integrated exit button, status LED, 12V/24VDC.
The S4A EL-250 is an innovative door handle integrated electromagnetic lock offering 270KG (600LBS) holding force. It features a built-in exit push button and adjustable door open delay.
Product Overview

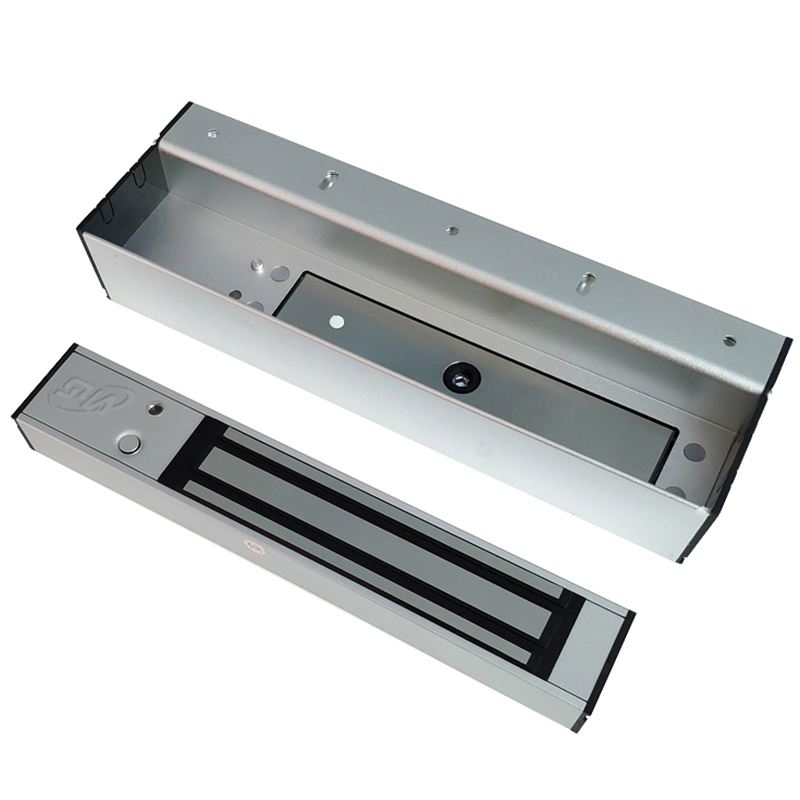

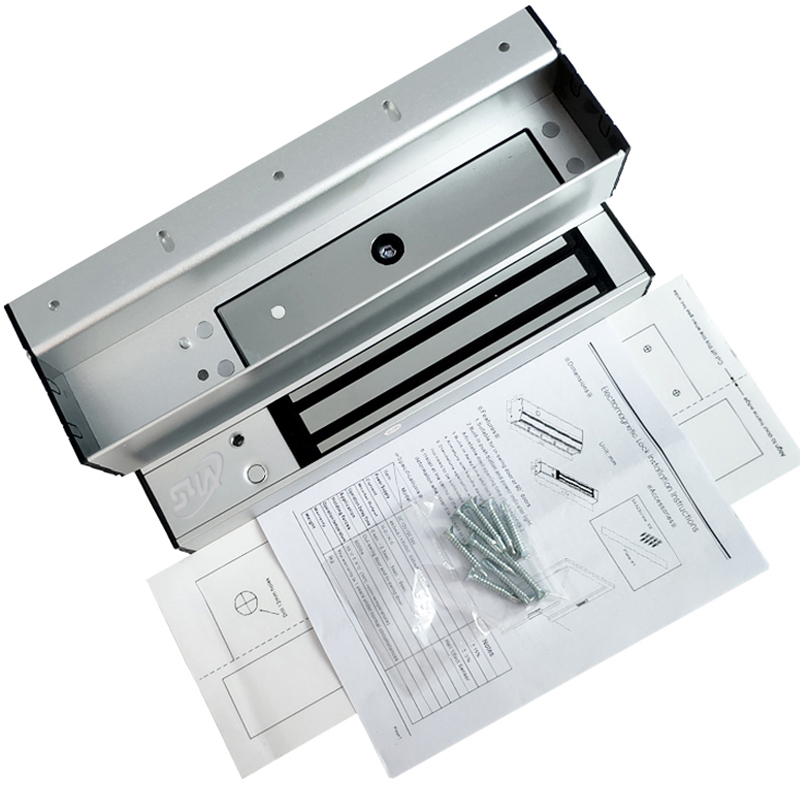

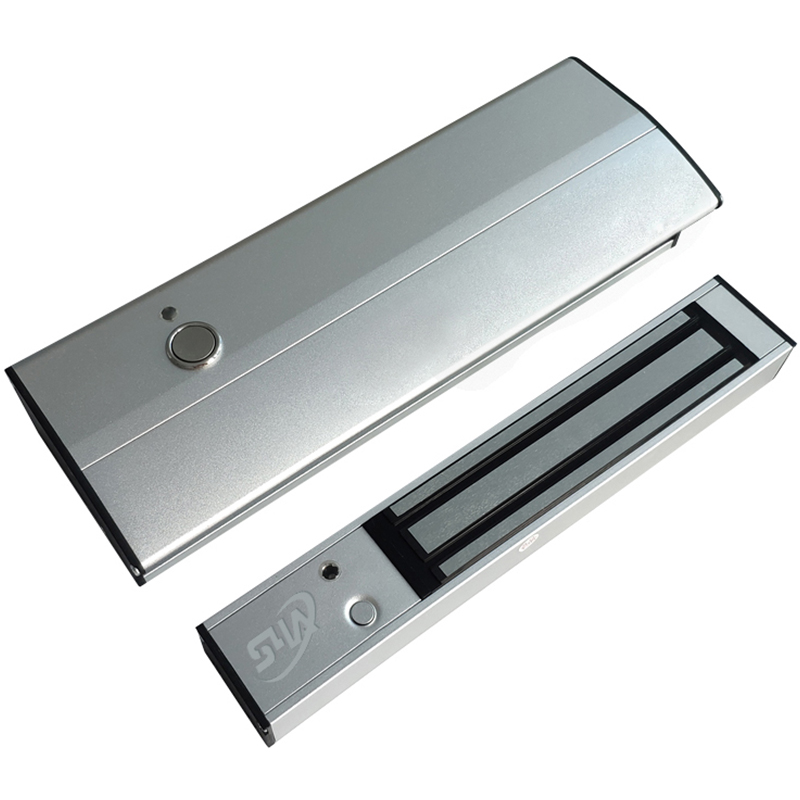

The S4A EL-250 is a unique standalone locking solution. It integrates a 270KG (600LBS) electromagnetic lock directly into an architectural door handle assembly. Outfitted with an integrated exit button, LED power status indicator, adjustable delay timers (0 to 9 seconds), and Hall Effect lock status monitoring (NO/NC), it eliminates the need for separate exit buttons on the wall.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 3 |
| Shipping Weight | 3.3 |
| Lock Type | single |
| Holding Force Kg | 270 |
| Holding Force Lbs | 600 |
| Holding Force Text | 270KG (600LBS) |
| Lock Dimensions | N/A |
| Armature Dimensions | N/A |
| Operating Voltage | DC 12V / DC 24V ± 15% |
| Current Draw | 12V/450mA, 24V/235mA |
| Signal Output | N.O / N.C Hall Effect Sensor |
| Led Indicator | Yes |
| Door Status Sensor | Yes |
| Time Delay | 0, 2.5, 5, 9 seconds |
| Suitable For | Out-swing door, In-swing door |
| Bracket Compatibility | |
| Operating Temperature | 35°C (Operating Rise) |
| Surface Temperature | 35°C ± 5°C |
| Suitable Humidity | 0~90% (non-condensing) |
| Shell Material | Aluminum alloy |
| Magnetic Material | Zinc |
| Armature Material | Zinc |
| Stock | 2 |
