In Stock
S4A: EL-350ST
S4A EL-350ST Single Door 180KG Magnetic Lock with LED & Lock Sensor
starstarstarstarstar
0.0(0 reviews)180KG magnetic lock with LED status light, lock sensor, 12V/24VDC.

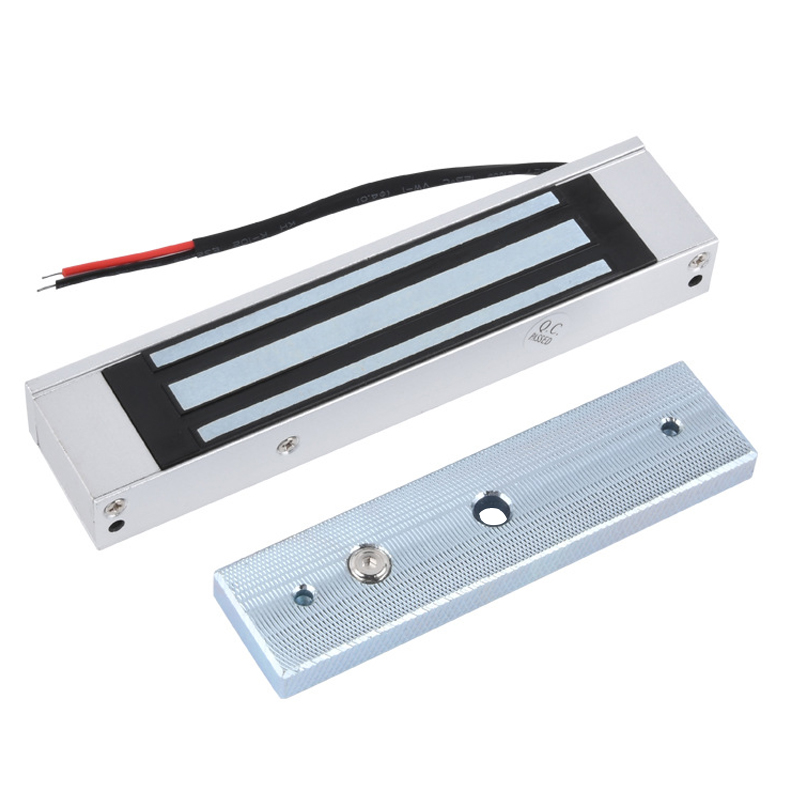

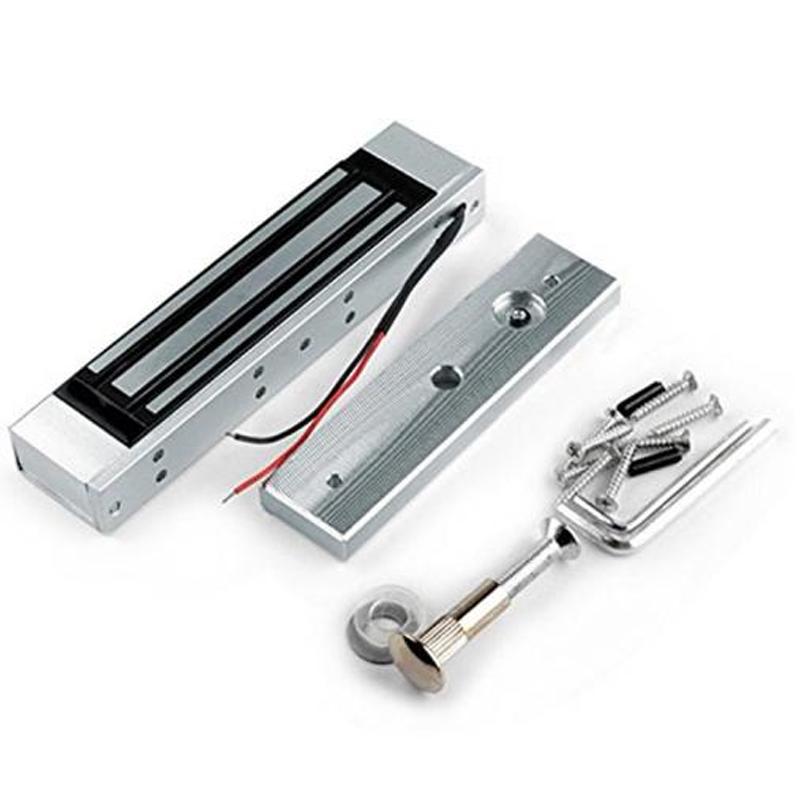

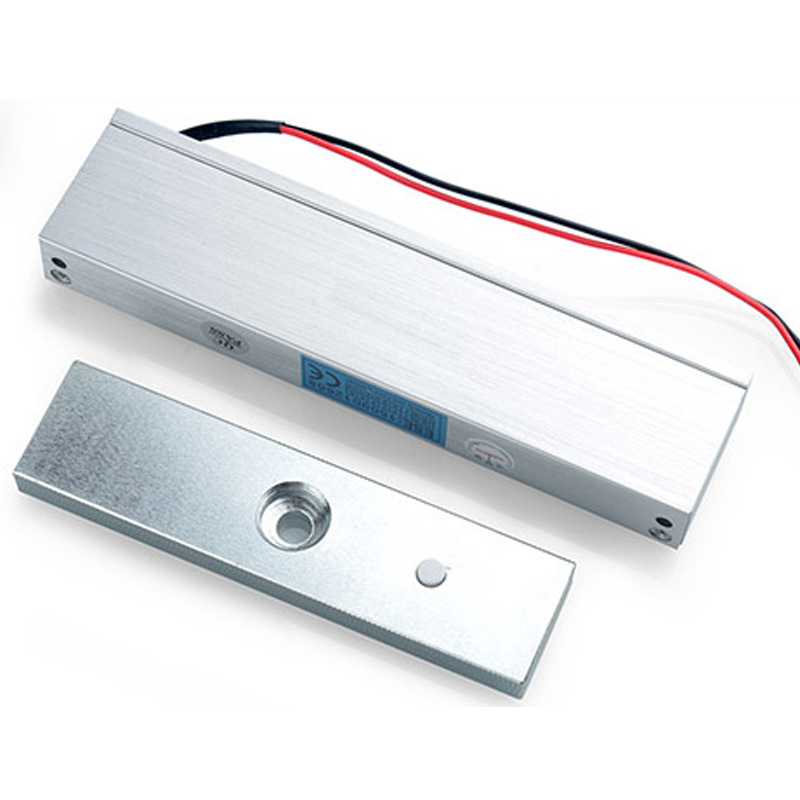

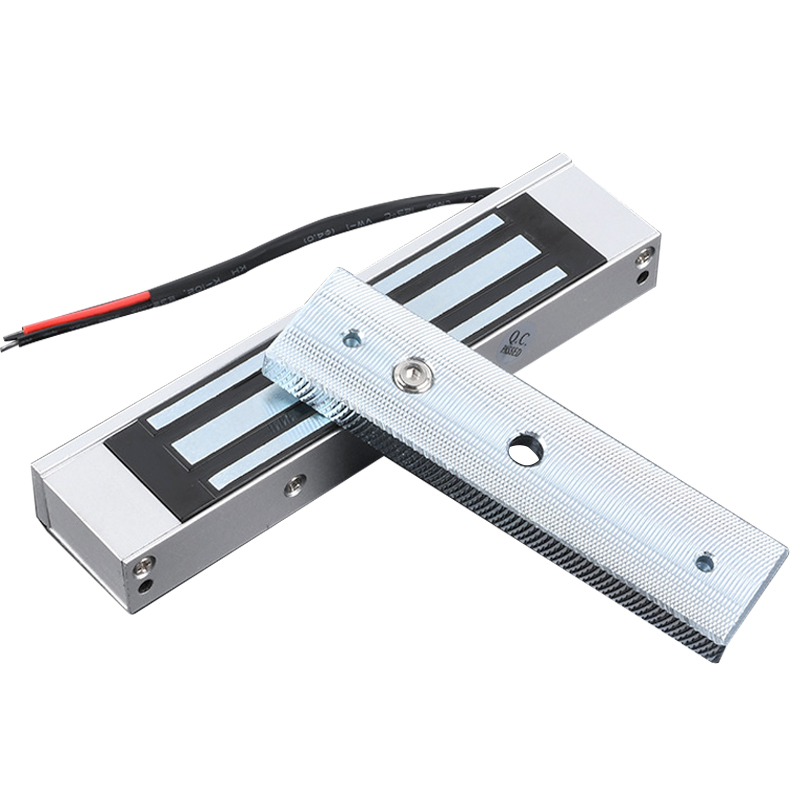

The S4A EL-350ST is a 180KG (350LBS) single door electromagnetic lock equipped with an LED status indicator and lock status feedback sensor.
verified180KG / 350LBSverifiedLED & Lock Sensorverified12V/24VDC
KES 6,148.00KES 7,200.00
local_offerSave KES 1,052 today
KES 0(KES 6,148 × 1)
local_offerTotal saved: KES 0
1 Year Manufacturer Warranty
Variants
EL-350ST180KG / 350LBS · LED & Lock Sensor · 12V/24VDCEL-350180KG / 350LBS · 12V/24VDC · Surface Mount
Product Overview
The S4A EL-350ST is a professional single door electromagnetic lock delivering 180KG (350LBS) holding force. It features a built-in LED indicator and a lock status feedback sensor. Highly energy efficient with low current consumption.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 1.2 |
| Shipping Weight | 1.4 |
| Lock Type | single |
| Holding Force Kg | 180 |
| Holding Force Lbs | 350 |
| Holding Force Text | 180KG (350LBS) |
| Lock Dimensions | 170Lx41.5Wx20.5H(mm) |
| Armature Dimensions | 130Lx33Wx9.3H(mm) |
| Operating Voltage | DC12V or DC24V |
| Current Draw | 12V/280mA, 24V/150mA |
| Signal Output | Lock status feedback |
| Led Indicator | Yes |
| Door Status Sensor | No |
| Time Delay | None |
| Suitable For | Wooden door, Glass door, Metal door, Fireproof door |
| Bracket Compatibility | L-Bracket, U-Bracket, ZL-Bracket |
| Operating Temperature | -10°C ~ 55°C (14°F ~ 131°F) |
| Surface Temperature | ≤ 20°C |
| Suitable Humidity | 0~90% (non-condensing) |
| Shell Material | Anodized aluminum |
| Magnetic Material | Zinc |
| Armature Material | Zinc |
| Stock | 1 |
