In Stock
500KG IP68 waterproof electromagnetic lock, 304 stainless steel, 12V/24VDC.
The S4A EL-W1200 is a waterproof IP68 electromagnetic lock delivering 500KG (1200LBS) holding force. Engineered for heavy outdoor gates and wet perimeter entries.
verified500KG / 1200LBSverifiedIP68 Waterproofverified304 Stainless Steel
KES 14,500.00KES 17,000.00
local_offerSave KES 2,500 today
KES 0(KES 14,500 × 1)
local_offerTotal saved: KES 0
1 Year Manufacturer Warranty
Product Overview

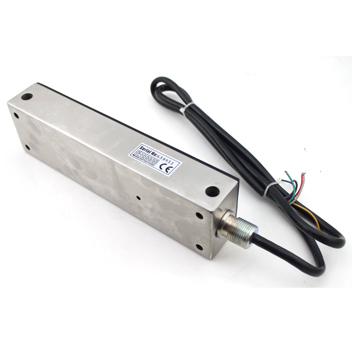

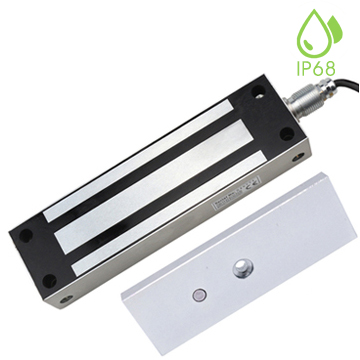

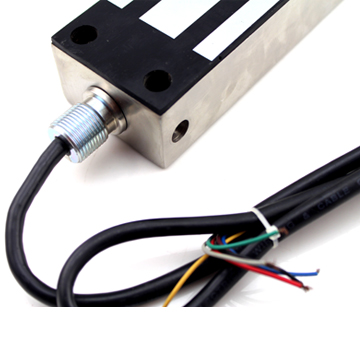

The S4A EL-W1200 is an IP68 weather-sealed, heavy-duty electromagnetic lock designed for heavy outdoor gates, perimeter doors, and industrial doors exposed to extreme wet environments. It delivers 500KG (1200LBS) of holding force, housed in a durable 304 stainless steel casing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 4.5 |
| Shipping Weight | 4.8 |
| Lock Type | single |
| Holding Force Kg | 500 |
| Holding Force Lbs | 1200 |
| Holding Force Text | 500KG (1200LBS) |
| Lock Dimensions | 220Lx47Wx25H(mm) |
| Armature Dimensions | 200Lx45Wx22.5H(mm) |
| Operating Voltage | DC12V (Adjustable DC24V) |
| Current Draw | 12V/500mA, 24V/250mA |
| Signal Output | None |
| Led Indicator | No |
| Door Status Sensor | No |
| Time Delay | None |
| Suitable For | Wooden door, Glass door, Metal door, Fireproof door |
| Bracket Compatibility | L-Bracket, U-Bracket, ZL-Bracket |
| Operating Temperature | -20°C ~ 55°C (-4°F ~ 131°F) |
| Surface Temperature | ≤ 20°C |
| Suitable Humidity | 0~90% (non-condensing) |
| Ip Rating | IP68 |
| Shell Material | 304 Stainless Steel |
| Magnetic Material | Zinc |
| Armature Material | Zinc |
| Stock | 8 |
