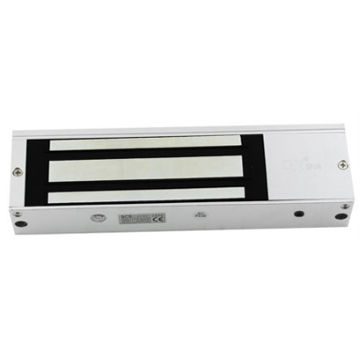

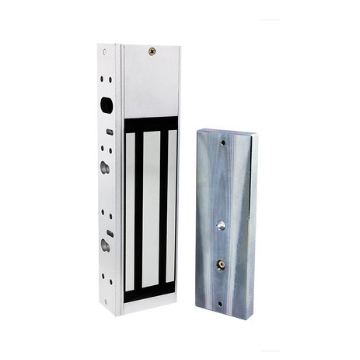

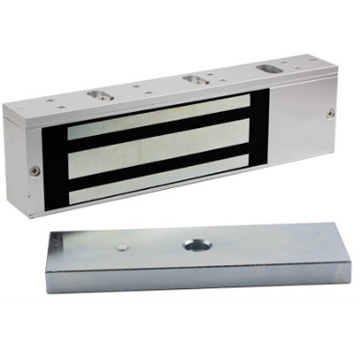

S4A EL-1200ST Single Door 500KG Magnetic Lock with LED & Time Delay

Name: S4A EL-1200ST Single Door 500KG Magnetic Lock with LED & Time Delay
Brand: S4A
SKU: EL-1200ST
Price: 14500 KES
Availability: InStock

star star star star star

0.0 (0 reviews)

500KG magnetic lock with LED status light, lock sensor, adjustable timer delay, 12V/24VDC.

The S4A EL-1200ST is a 500KG (1200LBS) single door electromagnetic lock featuring built-in LED indicators, status sensors, and adjustable time delay control.

verified 500KG / 1200LBS verified LED, Sensor & Timer Delay verified 12V/24VDC

KES 14,500.00 KES 17,500.00

local_offer Save KES 3,000 today

1 Year Manufacturer Warranty

Variants

EL-1200ST 500KG / 1200LBS · LED, Sensor & Timer Delay · 12V/24VDC EL-1200 500KG / 1200LBS · 12V/24VDC · Heavy Doors EL-1200SD 500KG / 1200LBS · LED & Lock Sensor · 12V/24VDC EL-1200SZ 500KG / 1200LBS · LED, Sensor & Buzzer Alarm · 12V/24VDC

Product Overview

The S4A EL-1200ST is a premium single door electromagnetic lock delivering 500KG (1200LBS) holding force. It features a built-in LED indicator, a lock status feedback sensor, and an adjustable exit delay. Perfect for security doors requiring timer delay.

Technical Specifications

Parameter	Specification
Product Weight	4.5
Shipping Weight	4.8
Lock Type	single
Holding Force Kg	500
Holding Force Lbs	1200
Holding Force Text	500KG (1200LBS)
Lock Dimensions	265Lx72Wx40H(mm)
Armature Dimensions	185Lx60Wx13H(mm)
Operating Voltage	DC12V (Adjustable DC24V)
Current Draw	12V/500mA, 24V/250mA
Signal Output	Lock status feedback
Led Indicator	Yes
Door Status Sensor	Yes
Time Delay	Yes (Adjustable)
Suitable For	Wooden door, Glass door, Metal door, Fireproof door
Bracket Compatibility	L-Bracket, U-Bracket, ZL-Bracket
Operating Temperature	-10°C ~ 55°C (14°F ~ 131°F)
Surface Temperature	≤ 20°C
Suitable Humidity	0~90% (non-condensing)
Shell Material	Anodized aluminum
Magnetic Material	Zinc
Armature Material	Zinc
