In Stock
S4A: EL-1200SZ

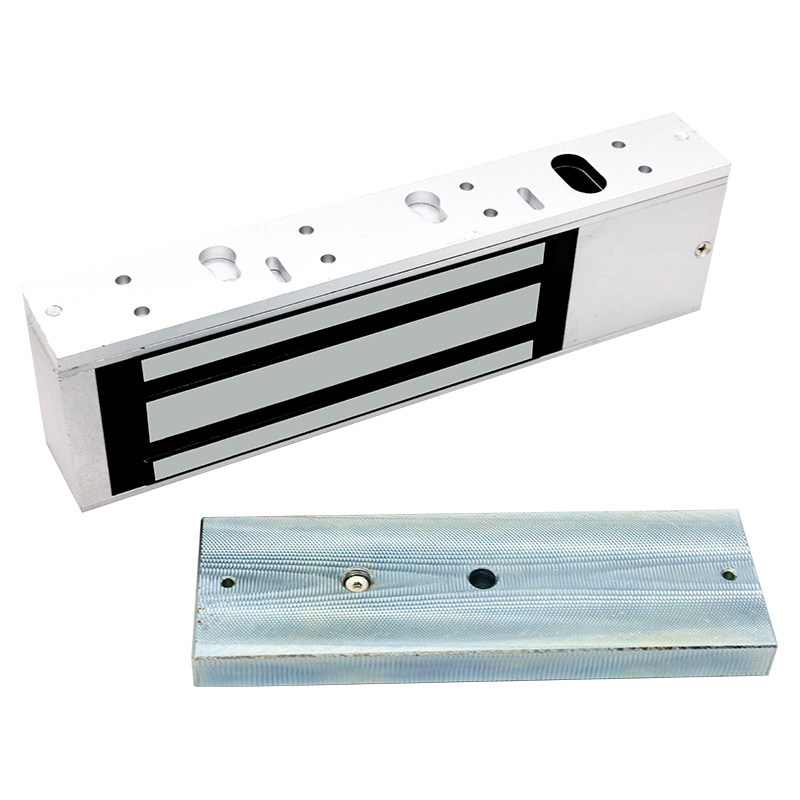

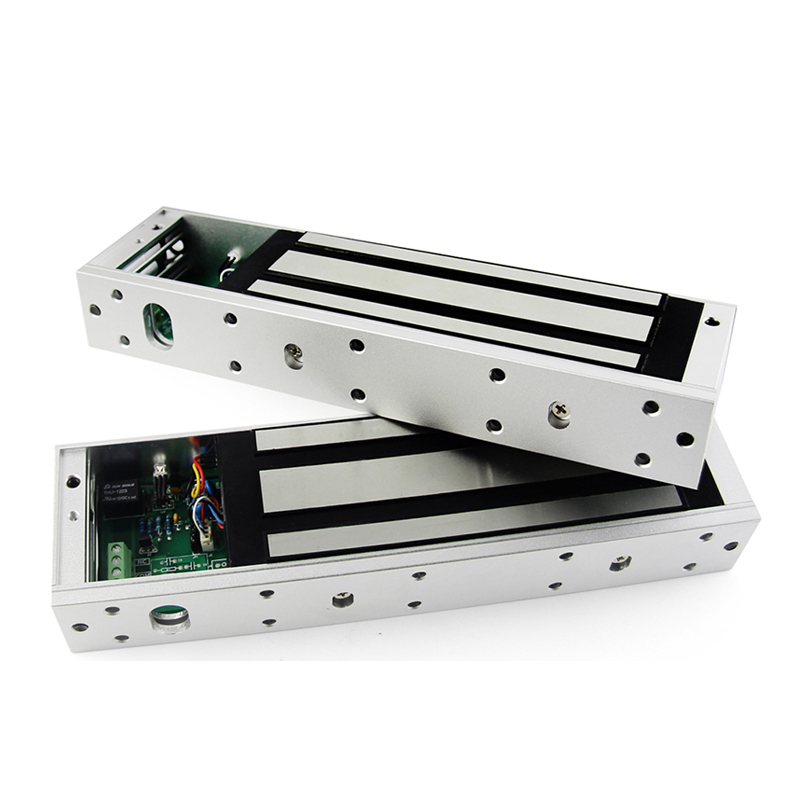

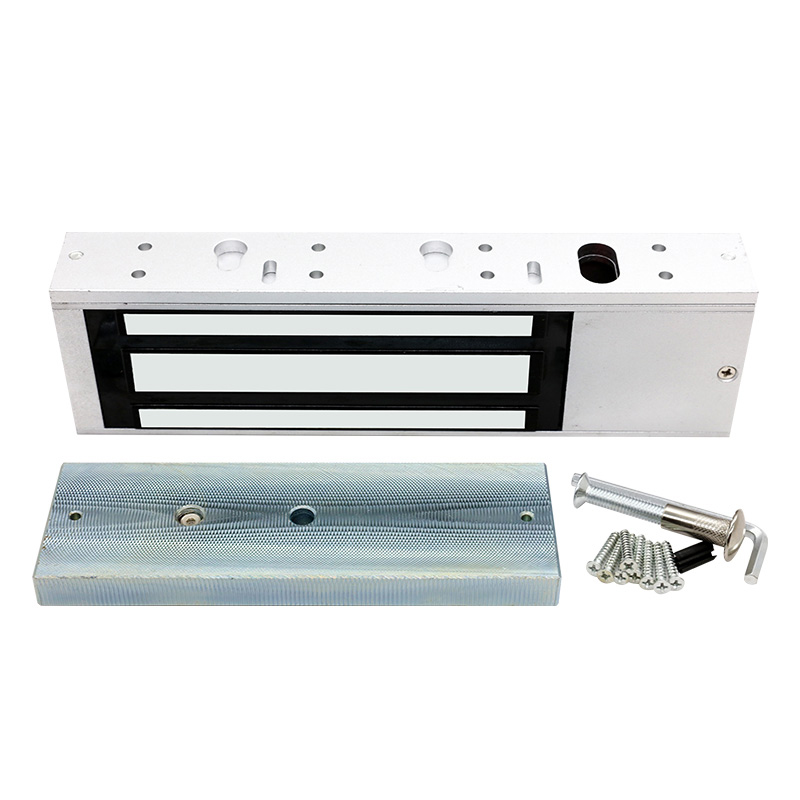

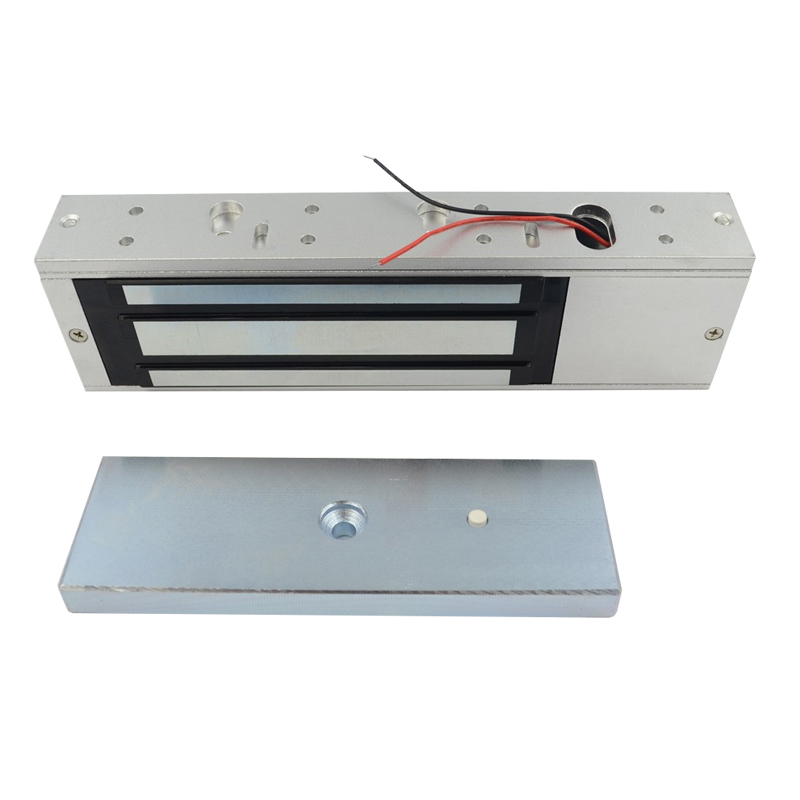

S4A EL-1200SZ Single Door 500KG Magnetic Lock with LED & Buzzer
star star star star star
0.0
(0 reviews)
500KG magnetic lock with LED status light, lock sensor, built-in buzzer alarm, 12V/24VDC.
The S4A EL-1200SZ is a 500KG (1200LBS) single door electromagnetic lock equipped with an LED indicator, lock sensor, and built-in buzzer alarm.
verified
500KG / 1200LBS
verified
LED, Sensor & Buzzer Alarm
verified
12V/24VDC
KES 13,920.00
KES 16,500.00
local_offer
Save KES 2,580
today
KES 0
(KES 13,920 × 1)
local_offer
Total saved: KES 0
1 Year Manufacturer Warranty
Variants
EL-1200SZ 500KG / 1200LBS · LED, Sensor & Buzzer Alarm · 12V/24VDC EL-1200 500KG / 1200LBS · 12V/24VDC · Heavy Doors EL-1200SD 500KG / 1200LBS · LED & Lock Sensor · 12V/24VDC EL-1200ST 500KG / 1200LBS · LED, Sensor & Timer Delay · 12V/24VDC
Product Overview
The S4A EL-1200SZ is a single door electromagnetic lock delivering 500KG (1200LBS) holding force. It features a built-in LED indicator, a lock status feedback sensor, and a buzzer alarm that triggers upon status changes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 4.5 |
| Shipping Weight | 4.8 |
| Lock Type | single |
| Holding Force Kg | 500 |
| Holding Force Lbs | 1200 |
| Holding Force Text | 500KG (1200LBS) |
| Lock Dimensions | 265Lx72Wx40H(mm) |
| Armature Dimensions | 185Lx60Wx13H(mm) |
| Operating Voltage | DC12V or DC24V |
| Current Draw | 12V/500mA, 24V/250mA |
| Signal Output | Lock status feedback with buzzer |
| Led Indicator | Yes |
| Door Status Sensor | Yes |
| Time Delay | None |
| Suitable For | Wooden door, Glass door, Metal door, Fireproof door |
| Bracket Compatibility | L-Bracket, U-Bracket, ZL-Bracket |
| Operating Temperature | -10°C ~ 55°C (14°F ~ 131°F) |
| Surface Temperature | ≤ 20°C |
| Suitable Humidity | 0~90% (non-condensing) |
| Shell Material | Anodized aluminum |
| Magnetic Material | Zinc |
| Armature Material | Zinc |
