500KG single door electromagnetic lock, 12V/24VDC input, anodized aluminum casing.

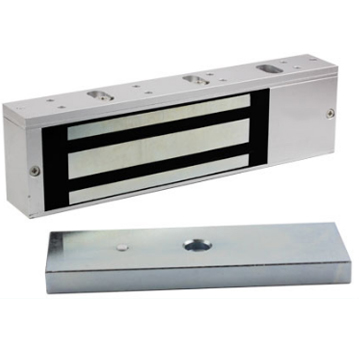

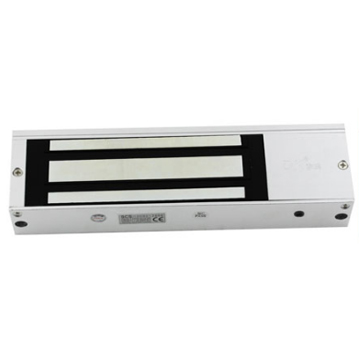

The S4A EL-1200 is a heavy-duty single door surface-mounted electromagnetic lock delivering 500KG (1200LBS) holding force. Designed for heavy security doors, gates, and industrial entrances.
verified500KG / 1200LBSverified12V/24VDCverifiedHeavy Doors
KES 12,760.00KES 15,000.00
local_offerSave KES 2,240 today
KES 0(KES 12,760 × 1)
local_offerTotal saved: KES 0
1 Year Manufacturer Warranty
Variants
EL-1200500KG / 1200LBS · 12V/24VDC · Heavy DoorsEL-1200SD500KG / 1200LBS · LED & Lock Sensor · 12V/24VDCEL-1200SZ500KG / 1200LBS · LED, Sensor & Buzzer Alarm · 12V/24VDCEL-1200ST500KG / 1200LBS · LED, Sensor & Timer Delay · 12V/24VDC
Product Overview
The S4A EL-1200 is a high-security single door electromagnetic lock offering 500KG (1200LBS) holding force. It is fail-safe and suitable for heavy swing doors made of wood, glass, metal, or fireproof material. Basic model without LED indicators.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 4.5 |
| Shipping Weight | 4.8 |
| Lock Type | single |
| Holding Force Kg | 500 |
| Holding Force Lbs | 1200 |
| Holding Force Text | 500KG (1200LBS) |
| Lock Dimensions | 265Lx72Wx40H(mm) |
| Armature Dimensions | 185Lx60Wx13H(mm) |
| Operating Voltage | DC12V (Adjustable DC24V) |
| Current Draw | 12V/500mA, 24V/250mA |
| Signal Output | None |
| Led Indicator | No |
| Door Status Sensor | No |
| Time Delay | None |
| Suitable For | Wooden door, Glass door, Metal door, Fireproof door |
| Bracket Compatibility | L-Bracket, U-Bracket, ZL-Bracket |
| Operating Temperature | -10°C ~ 55°C (14°F ~ 131°F) |
| Surface Temperature | ≤ 20°C |
| Suitable Humidity | 0~90% (non-condensing) |
| Shell Material | Anodized aluminum |
| Magnetic Material | Zinc |
| Armature Material | Zinc |
| Stock | 3 |
