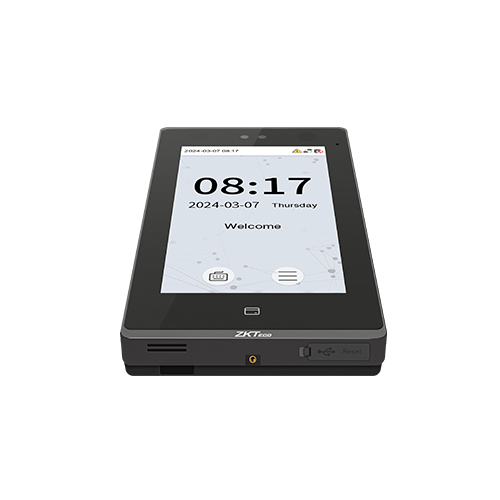

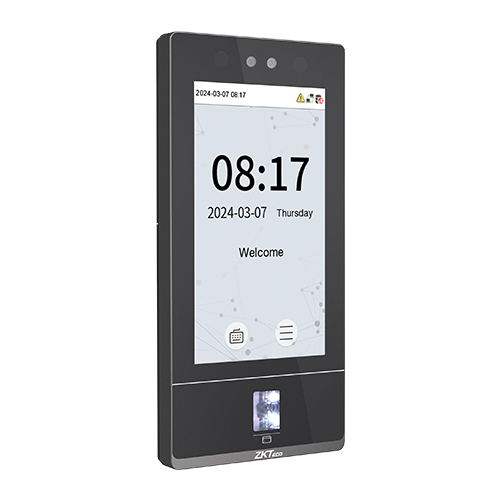

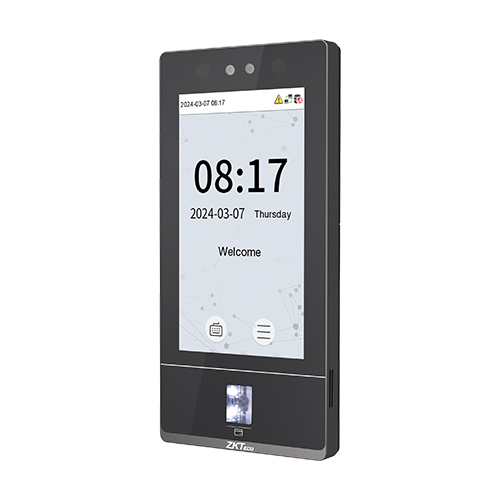

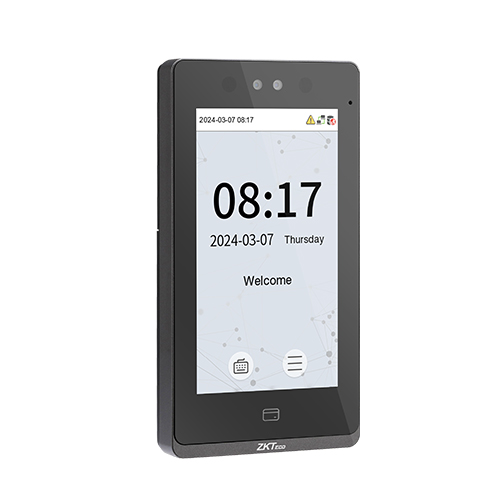

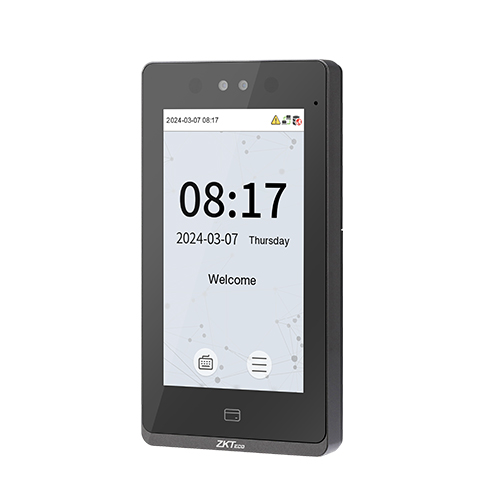

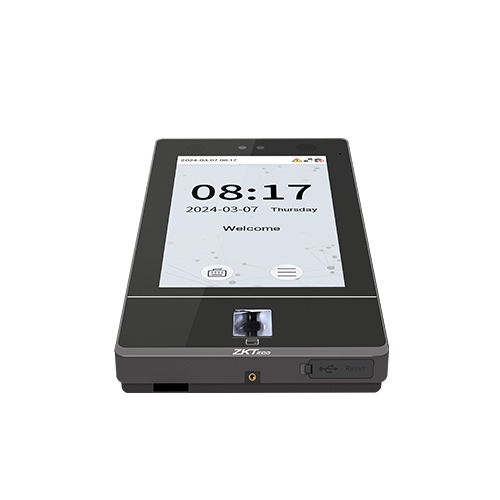

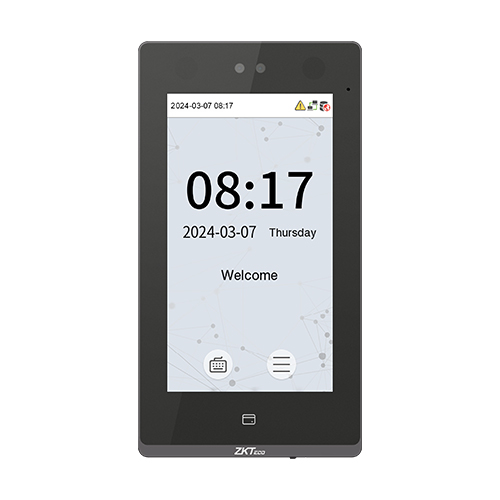

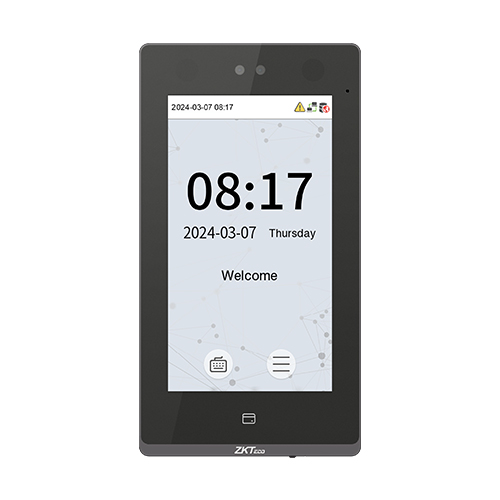

SenseFace 7B Access Control Terminal & Reader
ZKTeco SenseFace 7B Flagship Touchless Terminal, 10K Face / 10K Card capacity, 7.0" HD Touchscreen, IP65, TCP/IP & Wiegand.
The ZKTeco SenseFace 7B is a 7.0-inch touchscreen access control terminal engineered for touchless RFID card and Visible Light facial recognition. Built for high-traffic enterprise lobbies, it holds 10,000 face templates and 10,000 RFID cards in a sleek, fingerprint-free enclosure.
Product Overview
Designed for modern corporate facilities prioritizing touchless hygiene, the SenseFace 7B combines a 7.0-inch HD touchscreen with ZKTeco's visible light facial algorithm. Its binocular 2MP WDR camera performs zero-touch identification in under 0.3 seconds while preventing liveness fraud.
Why Buy This Product
7.0-inch HD Touch Screen
Expansive color touchscreen offers intuitive user interaction and sleek corporate styling.
100% Contactless Hygiene
Protects staff and visitors by providing rapid zero-touch facial and card identification.
IP65 Weather Resistance
Durable sealed build withstands harsh weather conditions.
Best for These Applications
Corporate Office Lobbies
Ideal for turnstiles and main entry gates requiring rapid touchless throughput.
Commercial Towers & Financial Institutes
Great for high-capacity access control networks.
Key Advantages
- Extended 2.5m Recognition Distance: Detects incoming employees smoothly before they reach the door.
- Direct Lock Relay Output: Drives magnetic door locks and turnstile drop-arms directly.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.82 |
| Shipping Weight | 1.15 |
| User Capacity | 10000 |
| Fingerprint Capacity | 0 |
| Face Capacity | 10000 |
| Card Capacity | 10000 |
| Log Capacity | 200000 |
| Verification Speed | < 0.3s |
| Authentication Modes | Visible Light Face, Card, Password |
| Ip Rating | IP65 |
| Tamper Detection | Yes |
| Communication Interfaces | TCP/IP, Wiegand Input/Output, RS485, USB Host |
| Display | 7.0" Touchscreen LCD |
| Camera | 2MP Binocular HD WDR Camera |
| Operating System | Linux |
| Dimensions | 240mm x 130mm x 28mm |
| Power Requirements | DC 12V 3A |
| Operating Temp | -10°C to 45°C |
| Operating Humidity | 10% to 90% |
| Certifications | CE, FCC, RoHS |
| Biometric Algorithm | ZKLiveFace V5.8 |
| Far | < 0.0001% |
| Frr | < 0.01% |
| Recognition Distance | 0.3m - 2.5m |
| Supported Software | ZKBio Access, ZKBio CVAccess, ZKBioSecurity |
| Wiegand Interface | Wiegand Input & Output |
| Door Relay Output | 1 Lock Relay, Alarm Relay, Exit Switch Input |
| Sensor Type | Dual HD WDR Camera |

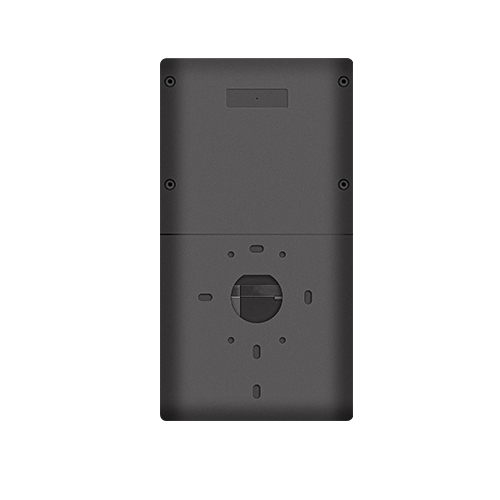

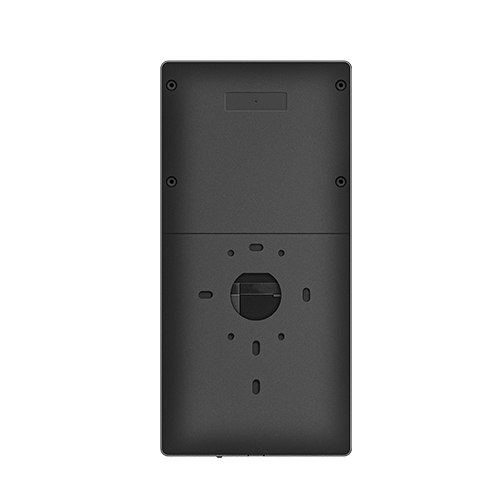

| Mounting Options | Wall Mount / Turnstile Mount Bracket |
| Credential Types | Face, 125kHz EM Card, PIN |
