ZKTeco SF100 Compact Touch Terminal, 2.8" Capacitive Touch LCD, 1.5K FP / 5K Card capacity, TCP/IP & Wiegand Out.

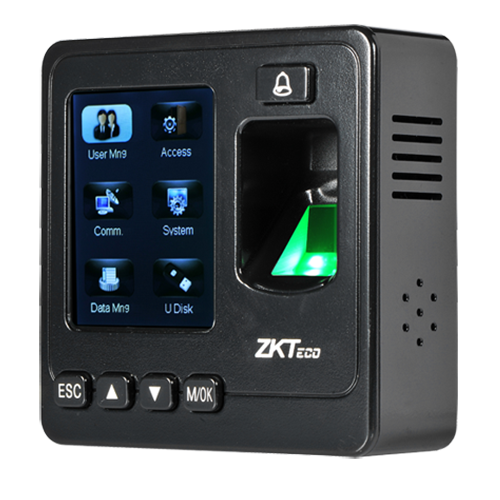

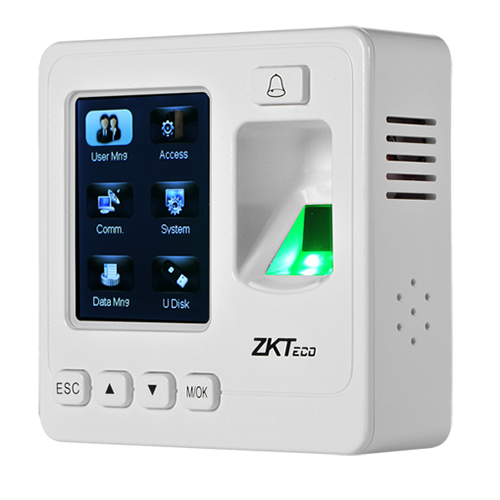

The ZKTeco SF100 is a ultra-compact standalone fingerprint access control terminal equipped with a 2.8-inch capacitive touch screen. Designed for interior office doors, it provides fingerprint, RFID card, and PIN access control within a sleek square form factor.
Product Overview
Combining compact square styling with an intuitive 2.8-inch touch screen, the ZKTeco SF100 holds 1,500 fingerprint templates and 5,000 RFID cards. It operates as a standalone door controller or as a slave fingerprint reader connected to an inBio controller via Wiegand output.
Why Buy This Product
2.8-inch Capacitive Touch Screen
Responsive touchscreen display provides effortless menu operation and user management.
Ultra-Compact Square Profile
Small 90mm x 90mm casing fits cleanly onto interior office walls.
Standalone or Slave Reader Modes
Operates independently controlling a door lock or connects to inBio access panels via Wiegand.
Best for These Applications
Interior Office Doors & Stores
Ideal for boutique offices and retail backrooms requiring compact fingerprint security.
Glass Door Enclosures
Great for wall mounting near glass doors.
Key Advantages
- Intuitive Graphical User Interface:Color touchscreen menu makes on-device user enrollment quick and easy.
- Dual Mode Operation:Switches between standalone door lock controller and slave reader mode.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.22 |
| Shipping Weight | 0.4 |
| User Capacity | 1500 |
| Fingerprint Capacity | 1500 |
| Face Capacity | 0 |
| Card Capacity | 5000 |
| Log Capacity | 80000 |
| Verification Speed | < 0.5s |
| Authentication Modes | Fingerprint, Card, Password |
| Ip Rating | IP54 |
| Tamper Detection | Yes |
| Communication Interfaces | TCP/IP, Wiegand Output, RS485, USB Host |
| Display | 2.8" Capacitive Touch Screen |
| Operating System | Linux |
| Dimensions | 90mm x 90mm x 34.5mm |
| Power Requirements | DC 12V 1.5A |
| Operating Temp | 0°C to 45°C |
| Operating Humidity | 20% to 80% |
| Certifications | CE, FCC, RoHS |
| Biometric Algorithm | ZKFinger VX10.0 |
| Far | < 0.0001% |
| Frr | < 0.01% |
| Supported Software | ZKBio Access, BioTime, ZKAccess 3.5 |
| Wiegand Interface | Wiegand Output |
| Door Relay Output | 1 Lock Relay, Alarm Relay, Exit Button Input |
| Sensor Type | ZK Optical Fingerprint Sensor |
| Mounting Options | Wall Mount Bracket |
| Credential Types | Fingerprint, 125kHz EM Card, Touch PIN |
| Stock | 5 |
