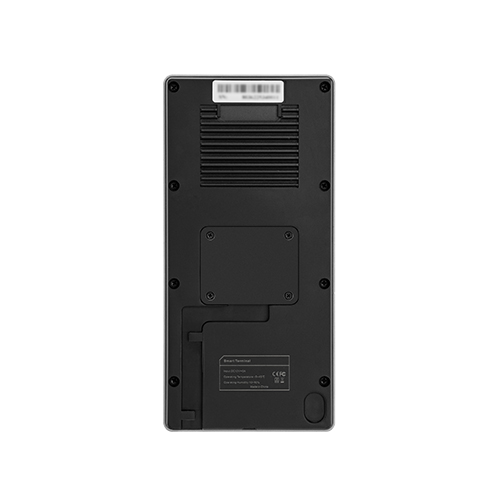

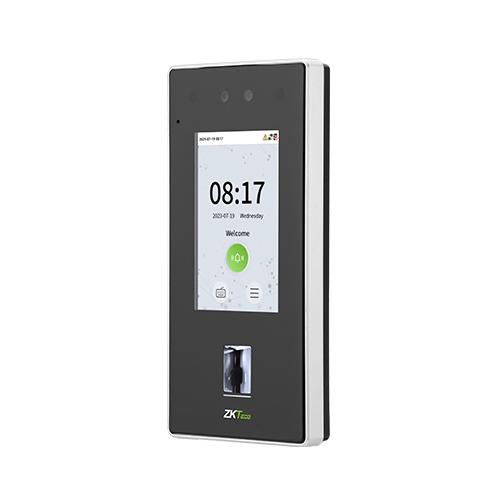

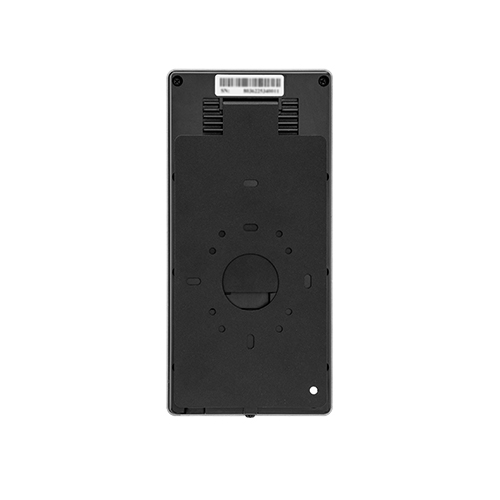

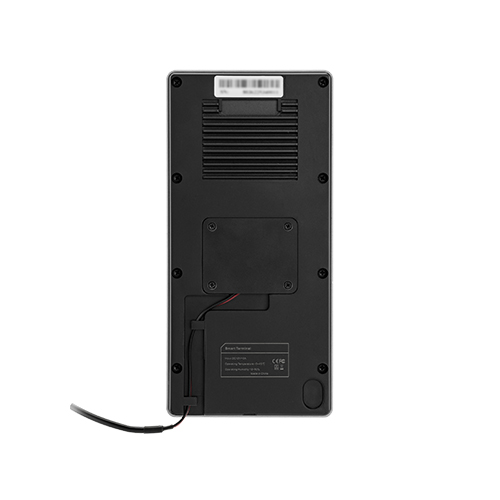

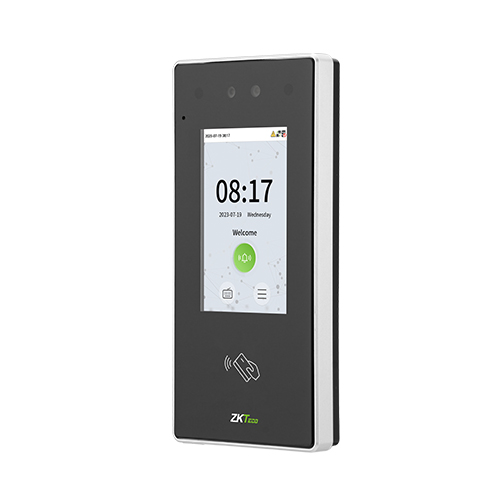

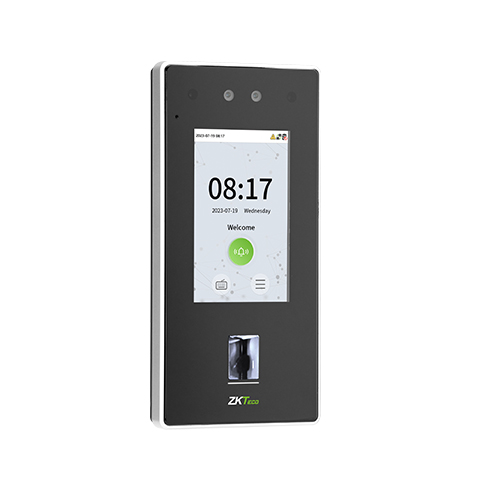

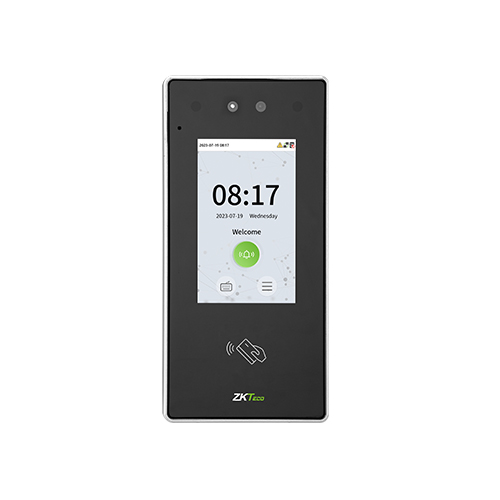

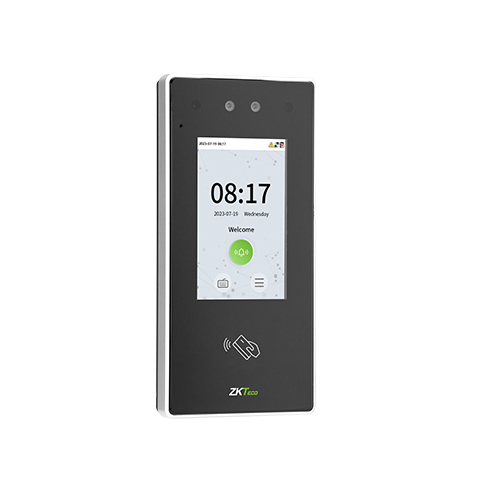

SpeedFace-V4L Pro Access Control Terminal & Reader
ZKTeco SpeedFace-V4L Pro Compact AI Terminal, 3K Face/FP/Card capacity, 4.0" Touch LCD, 2MP WDR Camera, IP65 rating, TCP/IP & Wiegand.

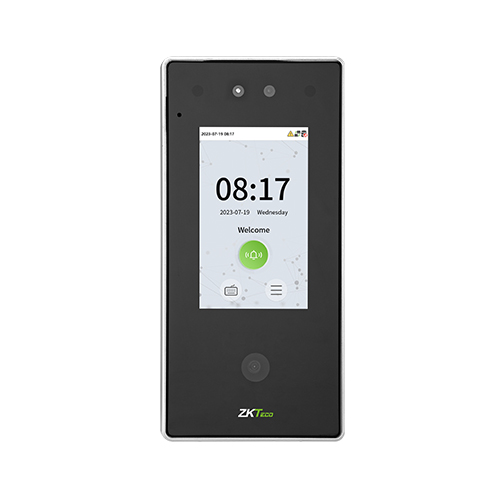

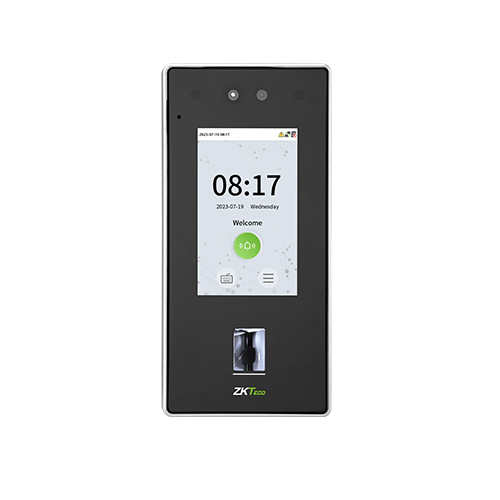

The ZKTeco SpeedFace-V4L Pro is a sleek, compact Visible Light Facial Recognition terminal featuring a 4.0-inch touchscreen display. Engineered for medium-sized business offices and retail entrances, it offers fast facial recognition, fingerprint verification, and RFID card access within an elegant ultra-narrow form factor.
Product Overview
Combining architectural elegance with high-performance biometrics, the SpeedFace-V4L Pro provides 3,000 face templates and 3,000 fingerprint capacity. Its updated AI vision processor enables zero-touch identification from up to 2.0 meters away, ensuring smooth employee passage while enhancing door access control security.
Why Buy This Product
Compact Narrow Profile
Slim 4.0-inch design fits perfectly onto narrow door frames and glass door stiles.
Touchless Hygienic Access
Validates authorized faces rapidly from up to 2.0 meters, maintaining seamless entry flows.
Anti-Spoofing Dual Cameras
2MP binocular cameras prevent spoofing using digital photos or printed facial images.
Best for These Applications
Corporate Offices & Executive Suites
Ideal for modern interior office doors requiring sophisticated aesthetic styling and reliable security.
Retail Outlets & Clinics
Great for staff entrances and restricted storage rooms.
Key Advantages
- Low-Light Recognition Performance:Automated LED fill lights ensure high recognition accuracy even in dimly lit corridors.
- Multi-Door Controller Connectivity:Wiegand output enables easy connection to centralized access panels such as ZKTeco inBio controllers.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Category Page Featured | Yes |
| Product Weight | 0.35 |
| Shipping Weight | 0.55 |
| User Capacity | 3000 |
| Fingerprint Capacity | 3000 |
| Face Capacity | 3000 |
| Card Capacity | 3000 |
| Log Capacity | 150000 |
| Verification Speed | < 0.3s |
| Authentication Modes | Visible Light Face, Fingerprint, Card, Password |
| Ip Rating | IP65 |
| Tamper Detection | Yes |
| Communication Interfaces | TCP/IP, Wiegand Input/Output, RS485, USB Host |
| Display | 4.0" Touchscreen LCD |
| Camera | 2MP Binocular WDR Camera |
| Operating System | Linux |
| Dimensions | 158mm x 74mm x 18.5mm |
| Power Requirements | DC 12V 1.5A |
| Operating Temp | -10°C to 45°C |
| Operating Humidity | 10% to 90% |
| Certifications | CE, FCC, RoHS |
| Biometric Algorithm | ZKLiveFace V5.8 / ZKFinger VX10.0 |
| Far | < 0.0001% |
| Frr | < 0.01% |
| Recognition Distance | 0.3m - 2.0m |
| Supported Software | ZKBio Access, ZKBio CVAccess, ZKBioSecurity |
| Wiegand Interface | Wiegand Input & Output |
| Door Relay Output | 1 Lock Relay, Alarm Relay, Exit Button & Door Sensor |
| Sensor Type | Optical Fingerprint Sensor & Dual WDR Camera |
| Mounting Options | Wall Mount Bracket |
| Credential Types | Face, Fingerprint, 125kHz EM Card, PIN |
| Stock | 1 |
