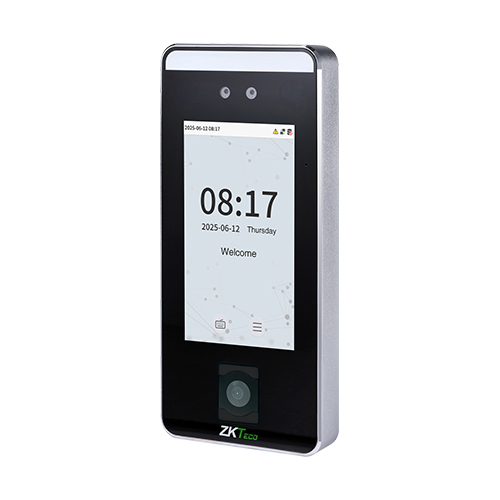

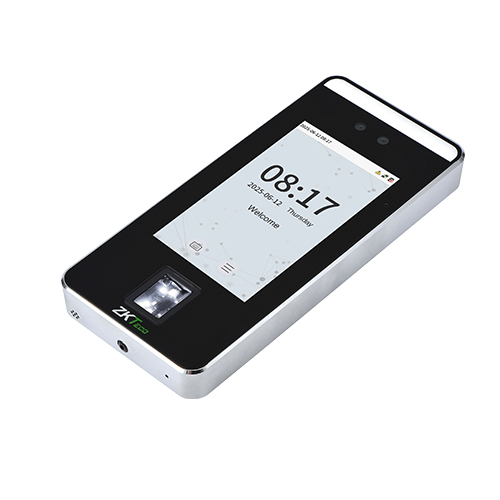

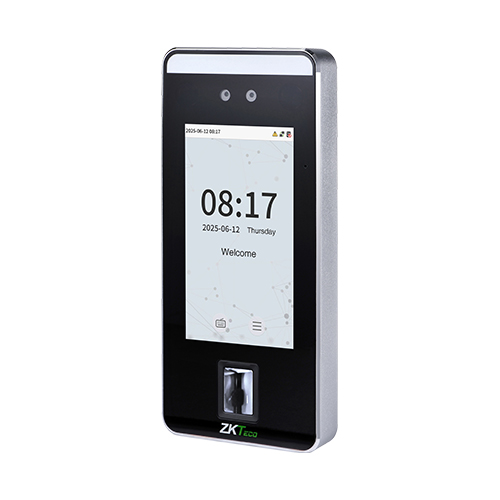

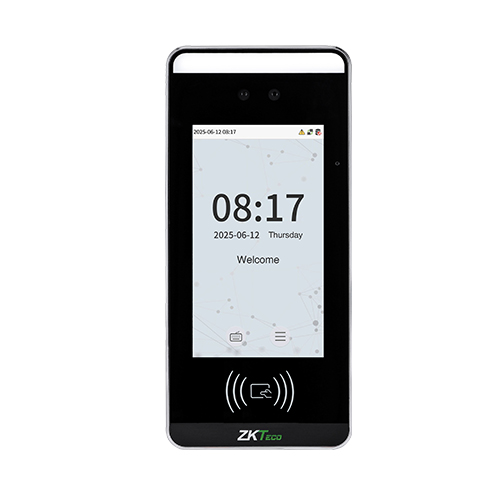

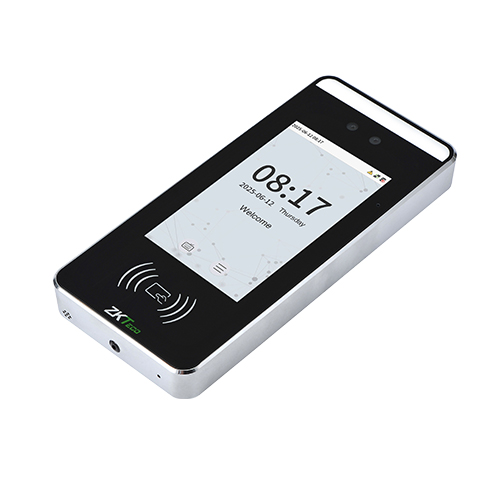

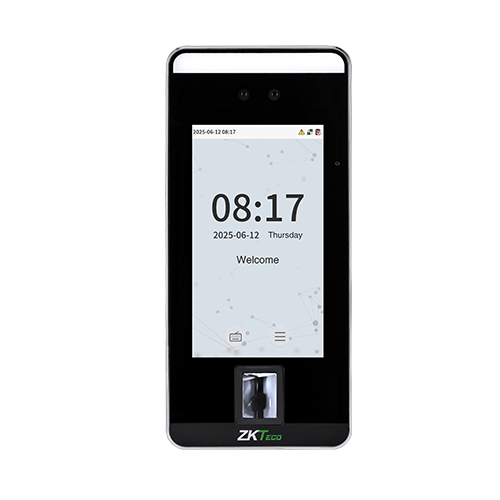

SpeedFace-V5L[QR] Access Control Terminal & Reader
ZKTeco SpeedFace-V5L[QR] Access Terminal, Integrated QR Code Reader + Visible Light Face & Fingerprint, 10K Users, 5.0" Touchscreen, IP65, TCP/IP & Wiegand.
The ZKTeco SpeedFace-V5L[QR] is an advanced multi-modal access control terminal equipped with an integrated high-speed QR code scanner module alongside visible light facial recognition and fingerprint biometrics. Designed specifically for visitor management and mobile app credentials, it reads printed or smartphone-displayed QR codes instantaneously.
Product Overview
Combining modern mobile access with enterprise biometrics, the SpeedFace-V5L[QR] simplifies visitor check-in and temporary employee pass validation. Facility administrators can issue time-limited QR passes via ZKBio Access or WhatsApp/Email, allowing guests to scan their mobile phone screen directly at the terminal while staff utilize facial or fingerprint biometrics for daily entry.
Why Buy This Product
Integrated Mobile QR Access
Scans temporary mobile QR visitor codes directly from smartphone screens without requiring physical badges.
Deep Learning Anti-Spoofing
Dual binocular cameras verify live human faces, blocking photo and digital video fraud attempt.
IP65 Weather Resistance
Durable weatherproof construction supports outdoor turnstile and exterior wall mounting.
Best for These Applications
Co-Working Spaces & Visitor Centers
Perfect for shared offices and commercial lobbies issuing temporary digital QR access passes to visitors.
Event Venues & Turnstiles
Ideal for rapid ticket and pass validation at venue entry turnstiles.
Key Advantages
- Dynamic & Static QR Decoding: Decodes encrypted dynamic QR codes generated by ZKBio Access mobile apps to prevent code sharing.
- Seamless Turnstile Integration: Compact footprint and built-in relays easily integrate into speed gates and tripod turnstiles.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.48 |
| Shipping Weight | 0.73 |
| User Capacity | 10000 |
| Fingerprint Capacity | 10000 |
| Face Capacity | 10000 |
| Card Capacity | 10000 |
| Log Capacity | 200000 |
| Verification Speed | < 0.3s |
| Authentication Modes | Visible Light Face, QR Code, Fingerprint, Card |
| Ip Rating | IP65 |
| Tamper Detection | Yes |
| Communication Interfaces | TCP/IP, Wiegand Input/Output, RS485, USB Host |
| Display | 5.0" Touchscreen LCD |
| Camera | 2MP Binocular WDR Camera + Optical QR Scanner |
| Operating System | Linux |
| Dimensions | 203mm x 91.93mm x 22.5mm |
| Power Requirements | DC 12V 3A |
| Operating Temp | -10°C to 45°C |
| Operating Humidity | 10% to 90% |
| Certifications | CE, FCC, RoHS |
| Biometric Algorithm | ZKLiveFace V5.8 / ZKFinger VX10.0 |
| Far | < 0.0001% |
| Frr | < 0.01% |
| Recognition Distance | 0.3m - 2.0m |
| Supported Software | ZKBio Access, ZKBio CVAccess, ZKBioSecurity |
| Wiegand Interface | Wiegand Input & Output |
| Door Relay Output | 1 Lock Relay, Alarm Relay, Exit Button & Door Sensor |
| Sensor Type | Optical QR Engine, Fingerprint Sensor & Dual WDR Camera |
| Mounting Options | Wall Mount / Turnstile Mount Bracket |
| Credential Types | Dynamic/Static QR Code, Face, Fingerprint, 125kHz EM Card |
