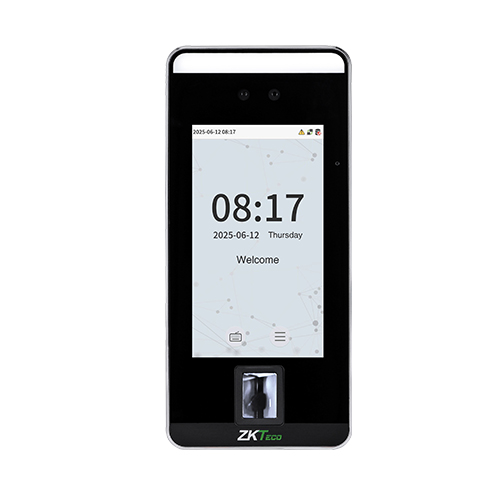

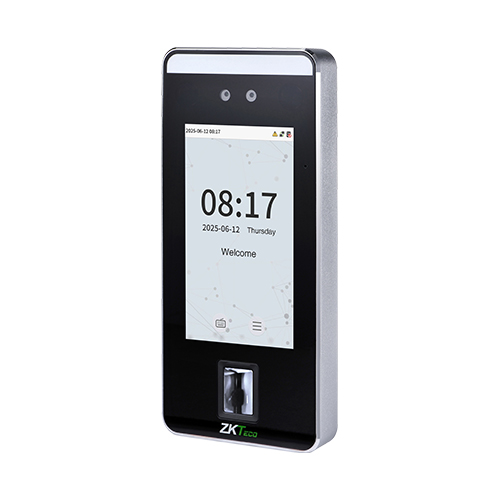

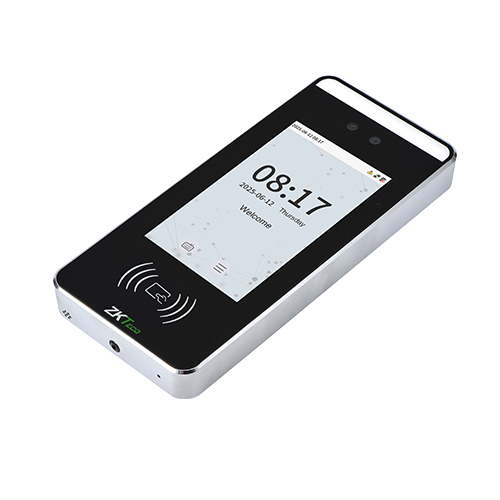

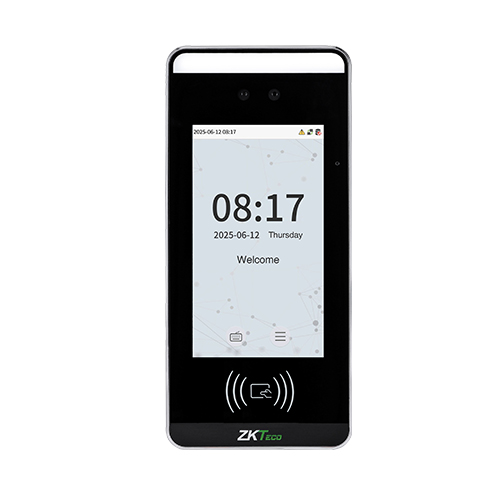

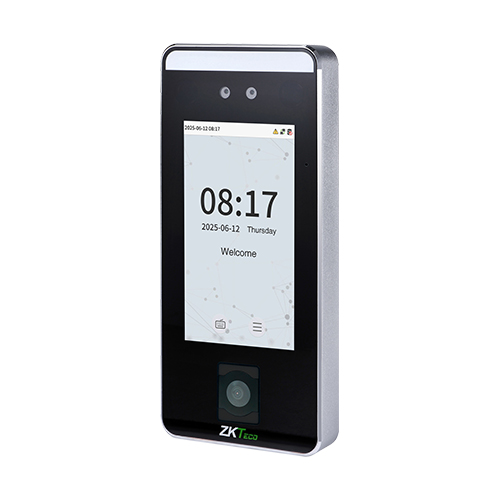

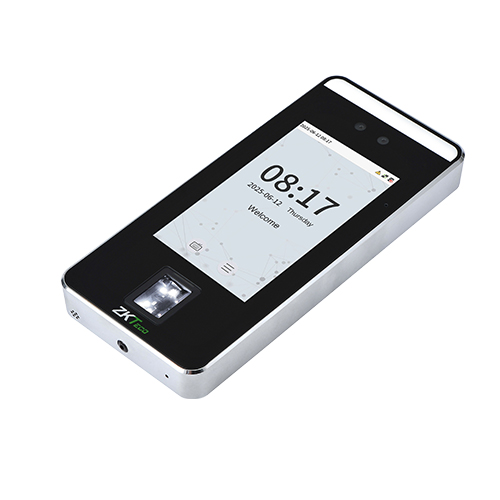

SpeedFace-V5L-RFID Access Control Terminal & Reader
ZKTeco SpeedFace-V5L-RFID AI Terminal, Dual RFID (EM/Mifare) + Visible Light Face & Fingerprint, 10K Users, 5.0" Touchscreen, IP65, TCP/IP & Wiegand.
The ZKTeco SpeedFace-V5L-RFID expands the industry-leading V5L platform with a multi-technology RFID proximity module. Capable of reading both 125kHz EM cards and 13.56MHz Mifare credentials alongside AI visible light face recognition and fingerprint scanning, it provides maximum flexibility for enterprise security upgrades.
Product Overview
Engineered for organizations transitioning from legacy proximity cards to biometric access control, the SpeedFace-V5L-RFID supports side-by-side card and facial identification. Its Linux OS and high-speed neural processing unit handle up to 10,000 face templates and 10,000 RFID cards without performance degradation, making it an ideal anchor for multi-door access control networks.
Why Buy This Product
Dual-Frequency RFID Support
Natively reads both 125kHz EM proximity cards and 13.56MHz IC cards for hassle-free card migration.
High-Speed AI Facial Matching
Recognizes authorized staff in under 0.3 seconds across varying angles and distance.
All-Weather Reliability
IP65-certified build guarantees reliable protection against heavy rain, dust, and temperature spikes.
Best for These Applications
Commercial Real Estate & Mixed Tenants
Perfect for multi-tenant office buildings requiring combined RFID badge and facial recognition entry.
University Campuses & Schools
Ideal for securing campus gates where students and staff utilize student ID cards alongside facial biometrics.
Key Advantages
- Multi-Factor Authentication Rules:Enforces strict entry modes such as Face + Card or Fingerprint + PIN for high-security vault doors.
- Robust Offline Log Storage:Saves 200,000 transaction events locally so access rules continue operating even if the server drops offline.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.46 |
| Shipping Weight | 0.71 |
| User Capacity | 10000 |
| Fingerprint Capacity | 10000 |
| Face Capacity | 10000 |
| Card Capacity | 10000 |
| Log Capacity | 200000 |
| Verification Speed | < 0.3s |
| Authentication Modes | Visible Light Face, Fingerprint, RFID Card, Password |
| Ip Rating | IP65 |
| Tamper Detection | Yes |
| Communication Interfaces | TCP/IP, Wiegand Input/Output, RS485, USB Host |
| Display | 5.0" Touchscreen LCD |
| Camera | 2MP Binocular WDR Camera |
| Operating System | Linux |
| Dimensions | 203mm x 91.93mm x 22.5mm |
| Power Requirements | DC 12V 3A |
| Operating Temp | -10°C to 45°C |
| Operating Humidity | 10% to 90% |
| Certifications | CE, FCC, RoHS |
| Biometric Algorithm | ZKLiveFace V5.8 / ZKFinger VX10.0 |
| Far | < 0.0001% |
| Frr | < 0.01% |
| Recognition Distance | 0.3m - 2.0m |
| Supported Software | ZKBio Access, ZKBio CVAccess, ZKBioSecurity |
| Wiegand Interface | Wiegand Input & Output |
| Door Relay Output | 1 Lock Relay, Alarm Relay, Exit Button & Door Sensor |
| Sensor Type | Optical Fingerprint Sensor & Dual WDR Camera |
| Mounting Options | Wall Mount / Turnstile Mount Bracket |
| Credential Types | Face, Fingerprint, 125kHz EM / 13.56MHz Mifare Card, PIN |
| Stock | 9 |
