SETU VFXTH0016, Telecom, Gateway, Matrix Comsec, 16 FXS, 16 VoIP Channels, 1U Rackmount
The Matrix SETU VFXTH0016 is a high-density 16 FXS rackmount VoIP gateway engineered for enterprises and hotels requiring 16 analog phone extensions integrated with an IP-PBX.
Product Overview

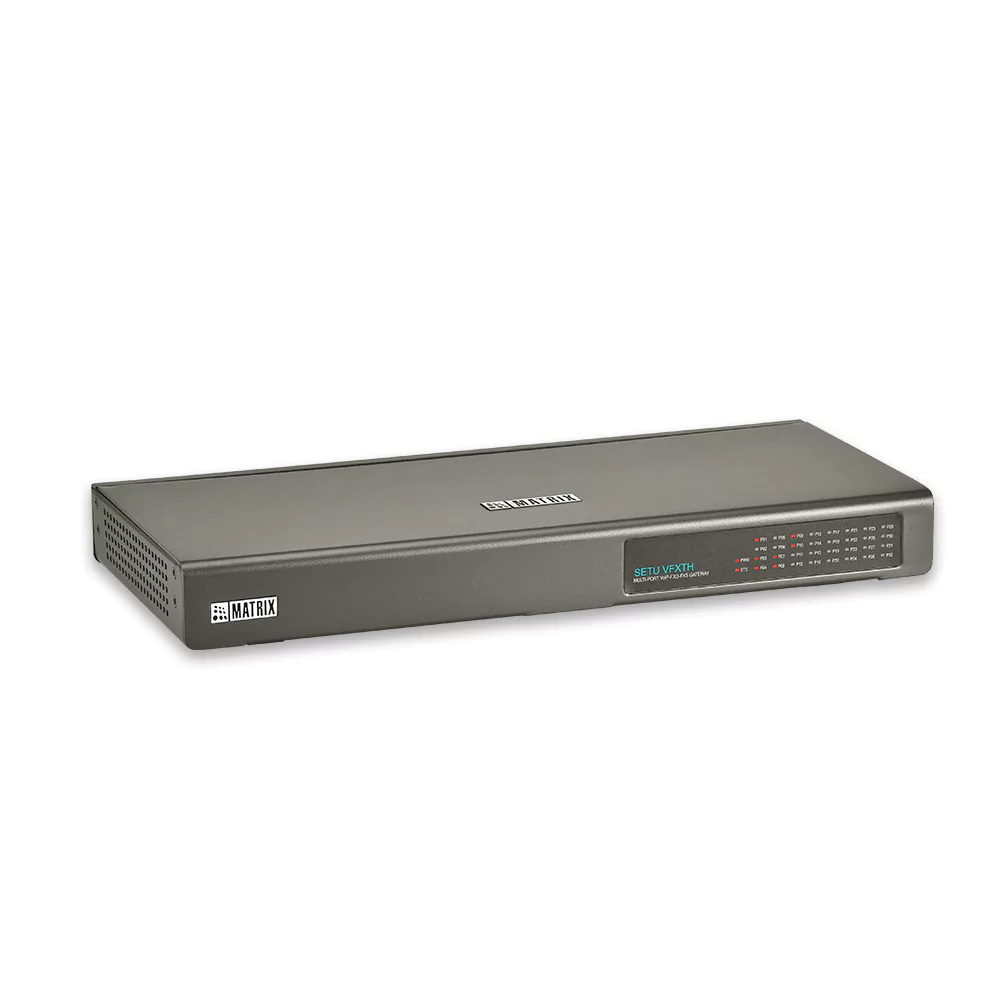

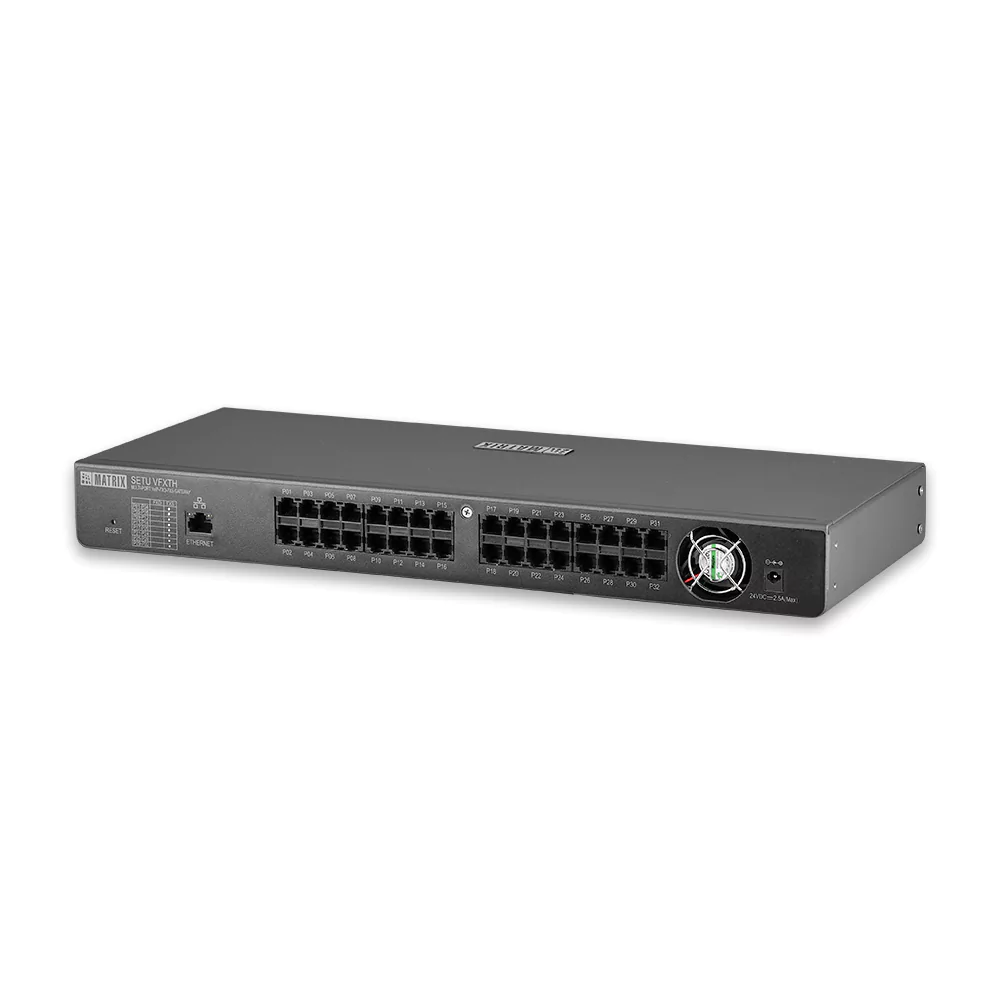

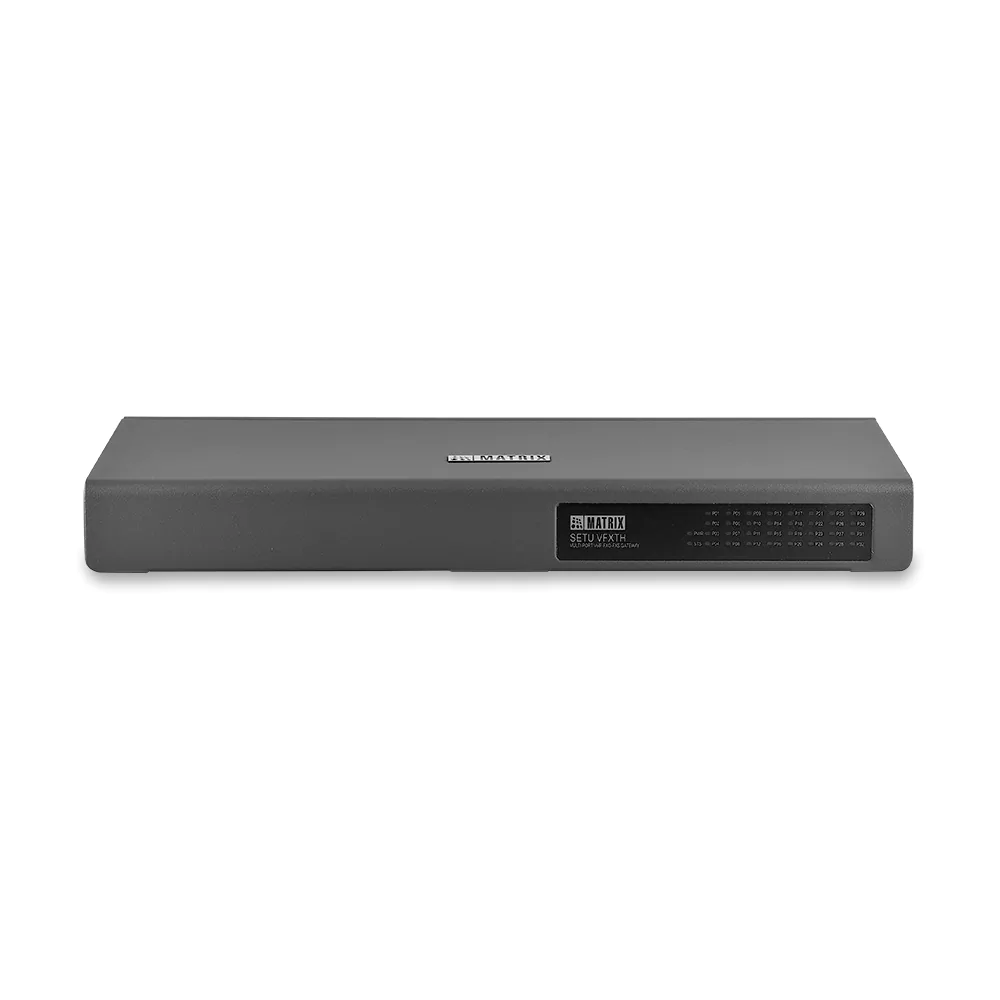

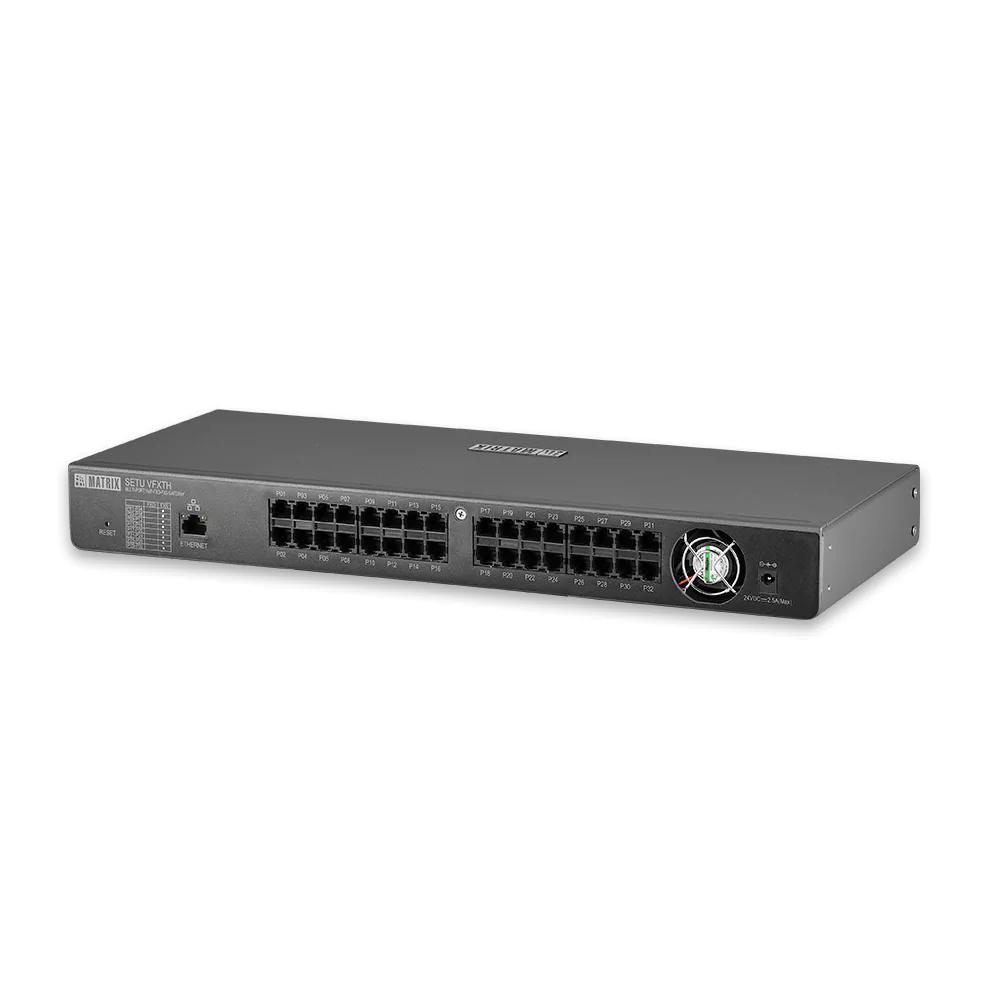

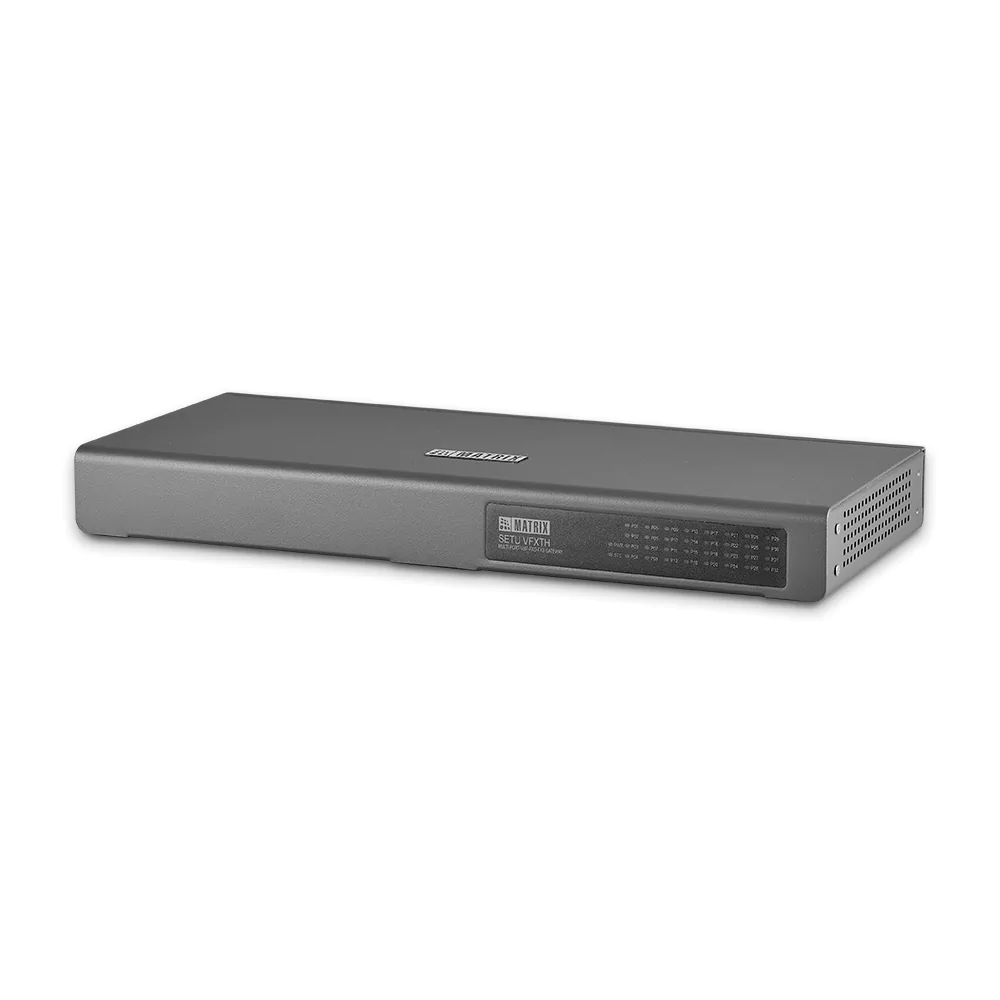

The Matrix SETU VFXTH0016 is a 1U rackmountable high-density VoIP gateway featuring 16 FXS extension ports. Purpose-built for hotels, multi-dwelling apartments, and enterprise offices, it connects 16 analog desk phones, fax machines, or PA speakers directly into IP communications networks. Built with high-grade hardware DSPs, the SETU VFXTH0016 supports G.168 echo cancellation, long-loop extension driving up to 3 km, T.38 real-time faxing, and TLS/SRTP voice encryption.
Why Buy This Product
1U High-Density Rackmount
Houses 16 FXS extension ports in a standard 1U 19-inch rack enclosure with internal power.
Ideal Hotel PBX Interface
Connects 16 guest room analog phones to modern cloud or IP hospitality PBX servers.
Enterprise Security TLS/SRTP
Protects voice communications across corporate IP networks with military-grade encryption.
Best for These Applications
Hotels & Resorts
Connecting guest room analog telephones to centralized IP telephony servers.
Enterprise Offices
Migrating large analog extension blocks to IP-PBX systems without rewiring.
Residential Complexes
Linking multi-tenant analog intercom phones with digital gatekeeper networks.
Key Advantages
- 3 km Long Loop Drive: Drives analog telephone extensions up to 3 kilometers across large properties.
- Reliable T.38 Faxing: Provides error-free fax transmission over IP channels for medical and legal documents.
- Auto-Provisioning Console: Supports HTTP/HTTPS/TFTP automated provisioning for rapid server room setup.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 3.2 |
| Shipping Weight | 3.7 |
| Fxo Ports | 0 |
| Fxs Ports | 16 |
| Gsm Channels | 0 |
| Pri Ports | 0 |
| Voip Channels | 16 |
| Sim Card Slots | 0 |
| Sip Accounts | 16 |
| Voip Protocols | SIP v2 (RFC3261), SDP, RTP, RTCP |
| Audio Codecs | G.711a/u, G.729A, G.723.1, iLBC |
| Fax Support | T.38 Real-Time Fax Relay & Pass-Through |
| Dtmf Modes | In-Band, RFC2833, SIP INFO |
| Echo Cancellation | G.168 Line Echo Cancellation (128ms) |
| Ethernet Ports | 2 x 10/100/1000 Mbps RJ45 Gigabit Ethernet Ports |
| Network Protocols | IPv4, DHCP, PPPoE, VLAN 802.1Q, STUN |
| Security Protocols | TLS 1.2, SRTP, HTTPS, Digest Authentication |
| Call Routing Features | FXS-to-VoIP Routing, VoIP-to-FXS Inbound Mapping, Flexible Extension Numbering, MWI Support |
| Power Supply | 100-240V AC (50/60Hz) Internal Power Supply |
| Power Consumption | 25W Maximum |
| Mounting Form Factor | 1U 19-inch Rackmount Chassis |
| Dimensions | 440 x 240 x 44 mm |
| Operating Temperature | 0°C to 45°C |
| Certifications | CE, FCC, TEC, RoHS |
