SETU VFXTH0808, Telecom, Gateway, Matrix Comsec, 8 FXS, 8 FXO, 16 VoIP Channels, 1U Rackmount
The Matrix SETU VFXTH0808 is a high-density 1U rackmount hybrid VoIP gateway featuring 8 FXS extension ports and 8 FXO PSTN line ports for complete branch office connectivity.
Product Overview

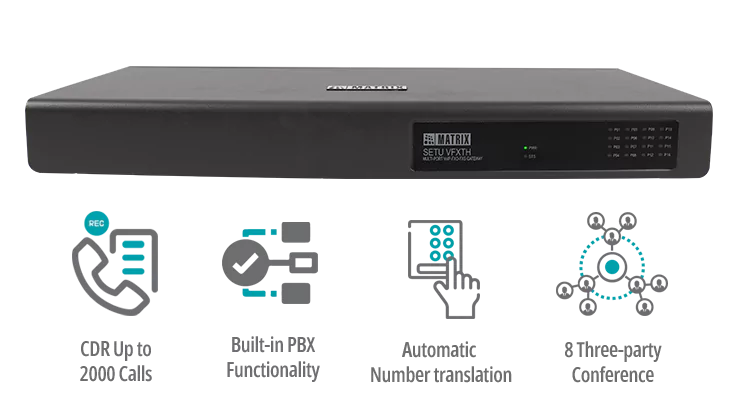

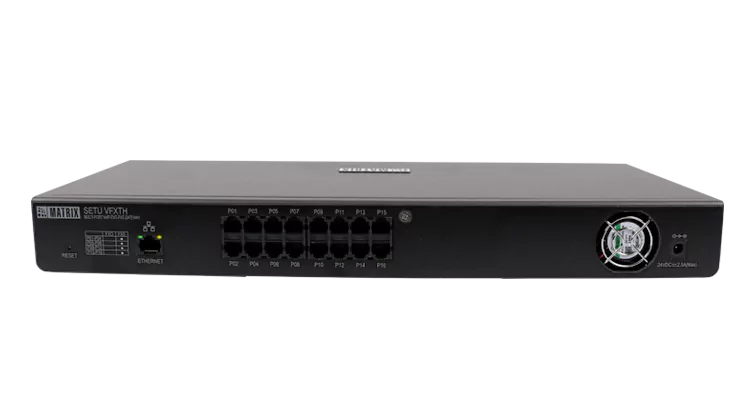

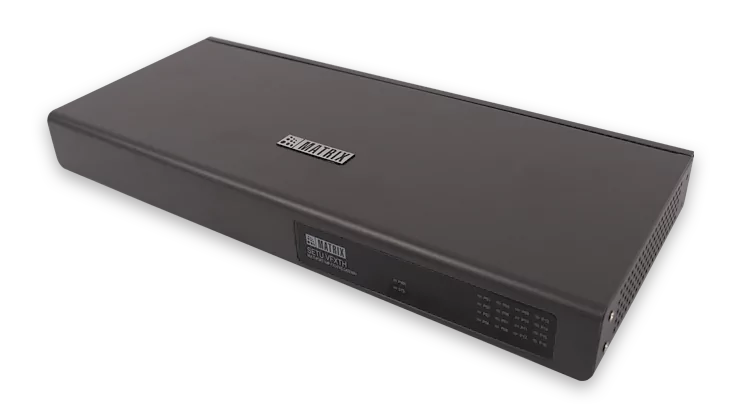

The Matrix SETU VFXTH0808 is a 1U rackmount hybrid gateway offering 8 FXS extension ports and 8 FXO PSTN line ports in one chassis. It provides 16 active VoIP SIP channels to seamlessly connect 8 analog phones/faxes and 8 PSTN copper landlines with IP communications networks. Featuring hardware power-fail line bypass relays, G.168 echo cancellation, and T.38 real-time faxing, the SETU VFXTH0808 provides an enterprise-ready interface for regional offices and branch facilities.
Why Buy This Product
8 FXS + 8 FXO Dual Capability
Combines 8 analog phone ports and 8 PSTN landline ports in a single 1U rackmount unit.
Hardware Power-Fail Bypass
Routes FXO trunk lines directly to FXS extension phones during power outages.
TLS/SRTP Voice Encryption
Protects company voice traffic and SIP credentials against packet sniffing.
Best for These Applications
Regional Enterprise Hubs
Offices needing 8 PSTN trunks and 8 internal extension phones linked to an IP-PBX.
Medical & Clinical Facilities
Facilities requiring local landline emergency backup and analog extension desk phones.
Financial Branches
Bank branches preserving local landlines for fraud check calls and faxing.
Key Advantages
- 16 Active VoIP Channels:Supports 16 simultaneous call connections with zero voice distortion.
- Auto-Tuning Impedance:Eliminates side-tone and echo on PSTN analog landlines.
- Telco 50-Pin / RJ11 Options:Flexible physical wiring options for clean server rack patch panel integration.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 3.3 |
| Shipping Weight | 3.8 |
| Fxo Ports | 8 |
| Fxs Ports | 8 |
| Gsm Channels | 0 |
| Pri Ports | 0 |
| Voip Channels | 16 |
| Sim Card Slots | 0 |
| Sip Accounts | 16 |
| Voip Protocols | SIP v2 (RFC3261), SDP, RTP, RTCP |
| Audio Codecs | G.711a/u, G.729A, G.723.1, iLBC |
| Fax Support | T.38 Real-Time Fax Relay & Pass-Through |
| Dtmf Modes | In-Band, RFC2833, SIP INFO |
| Echo Cancellation | G.168 Line Echo Cancellation (128ms) |
| Ethernet Ports | 2 x 10/100/1000 Mbps RJ45 Gigabit Ethernet Ports |
| Network Protocols | IPv4, DHCP, PPPoE, VLAN 802.1Q, STUN |
| Security Protocols | TLS 1.2, SRTP, HTTPS, Digest Authentication |
| Call Routing Features | FXO-to-SIP Inbound, SIP-to-FXS Outbound, Emergency Bypass Relays, LCR Digit Translation |
| Power Supply | 100-240V AC (50/60Hz) Internal Power Supply |
| Power Consumption | 28W Maximum |
| Mounting Form Factor | 1U 19-inch Rackmount Chassis |
| Dimensions | 440 x 240 x 44 mm |
| Operating Temperature | 0°C to 45°C |
| Certifications | CE, FCC, TEC, RoHS |
| Stock | 3 |
