SETU VFXTH0032, Telecom, Gateway, Matrix Comsec, 32 FXS, 32 VoIP Channels, 1U Rackmount

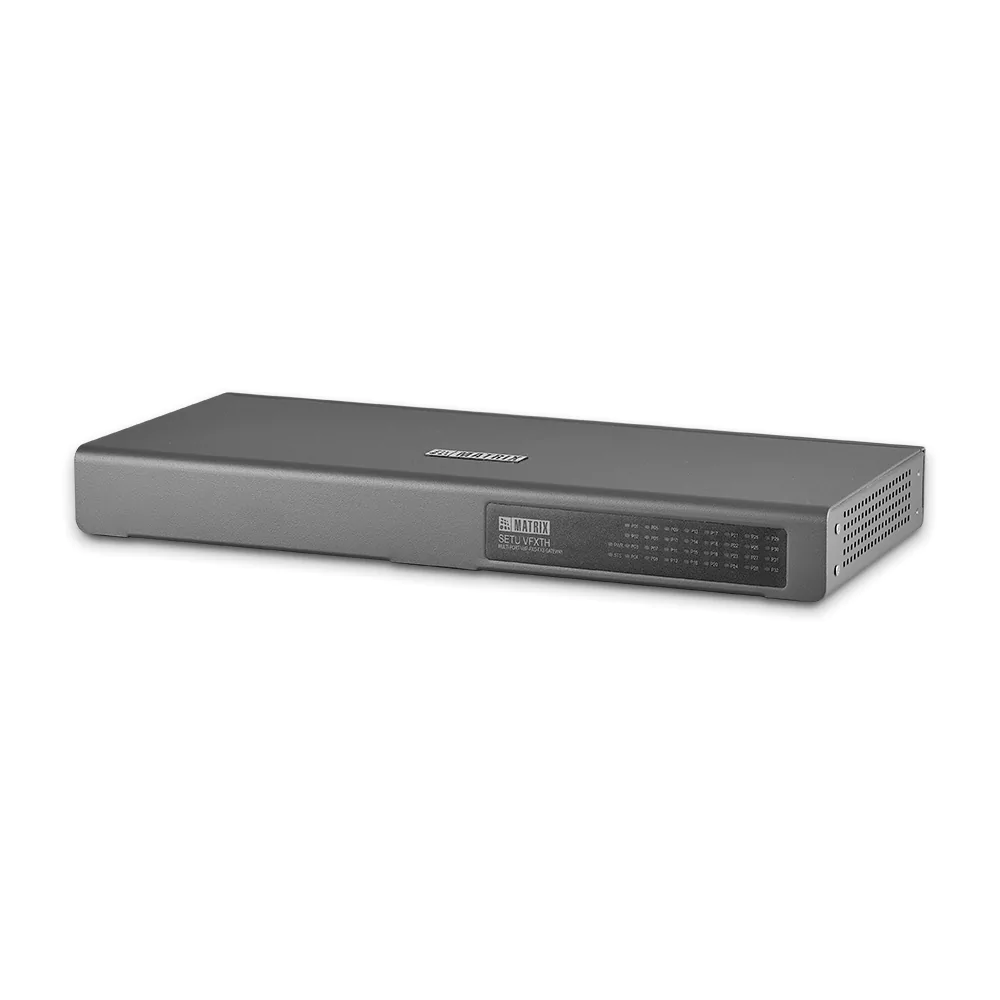

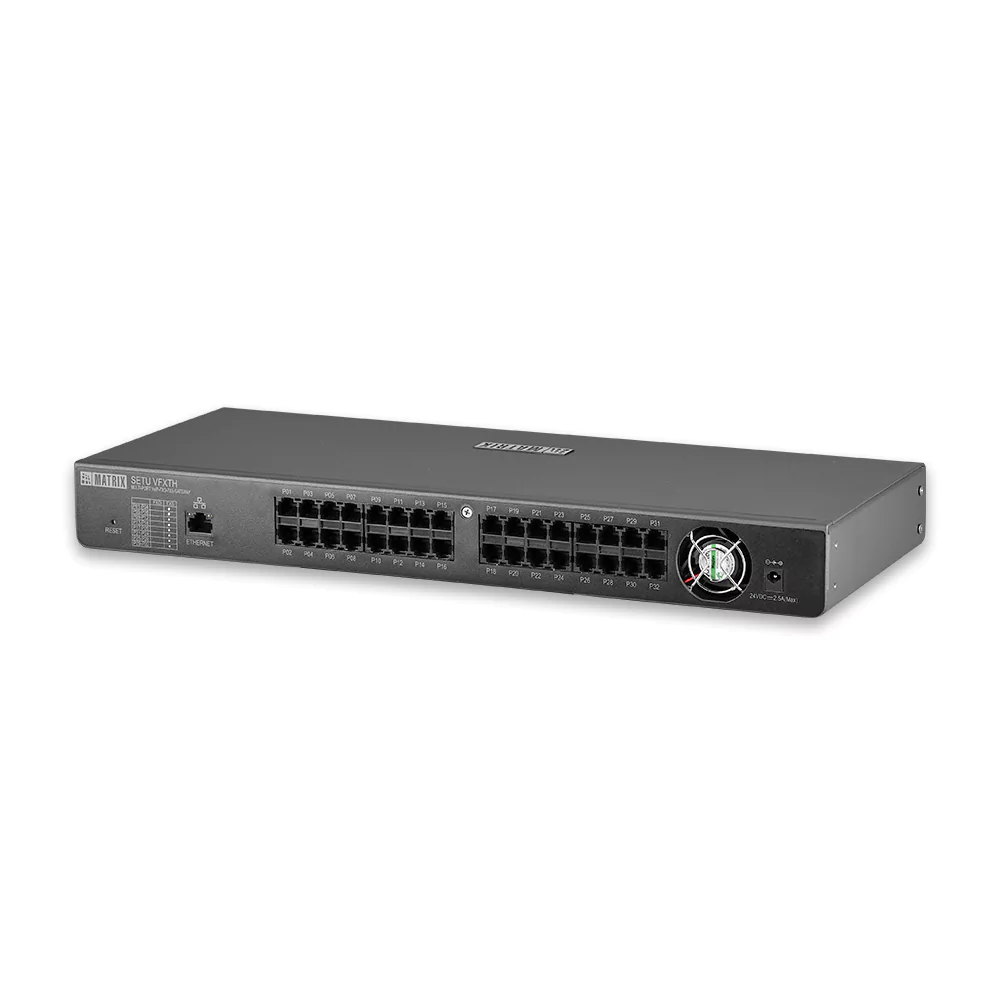

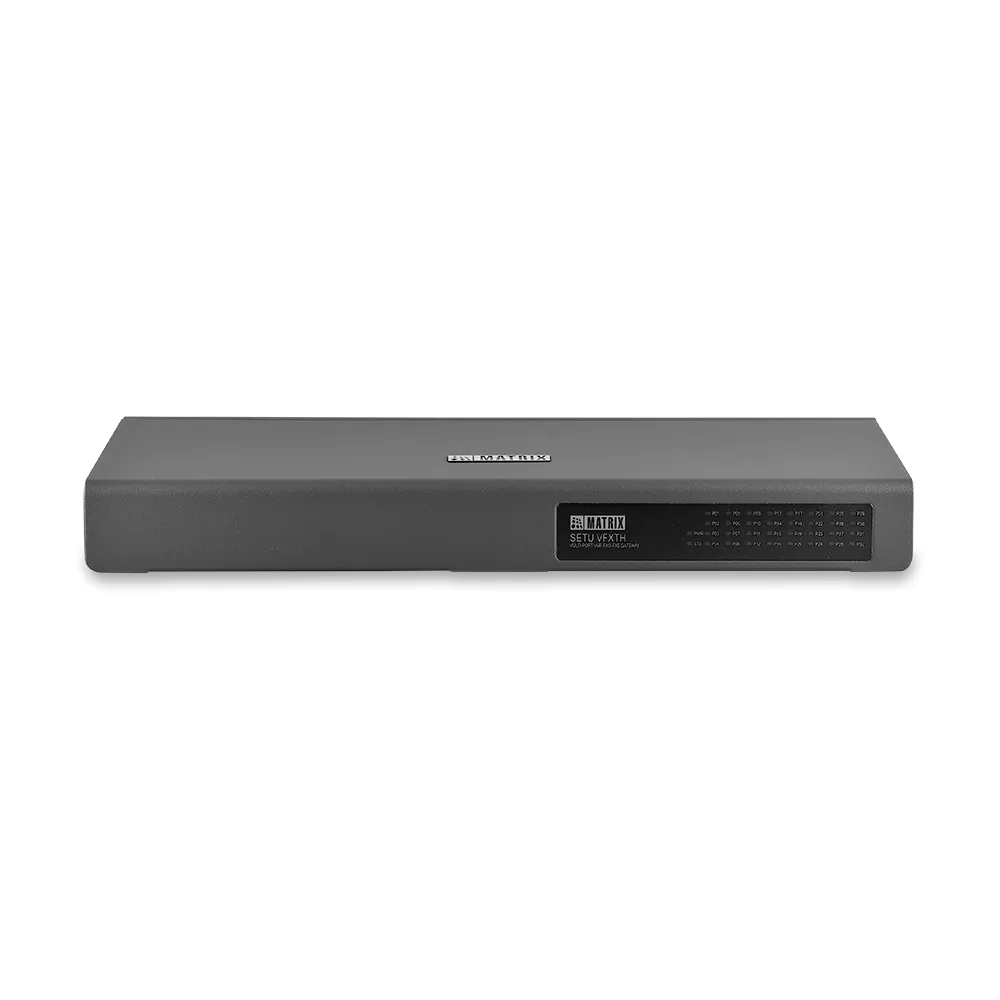

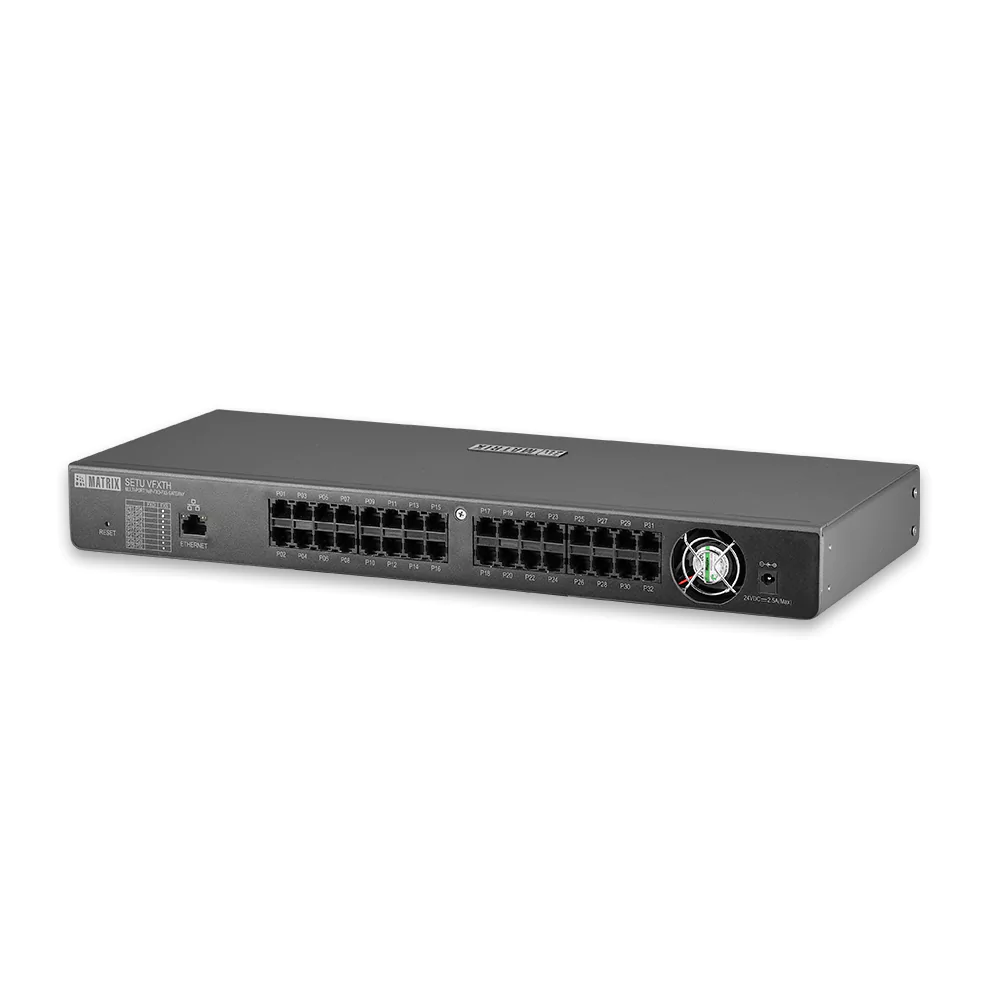

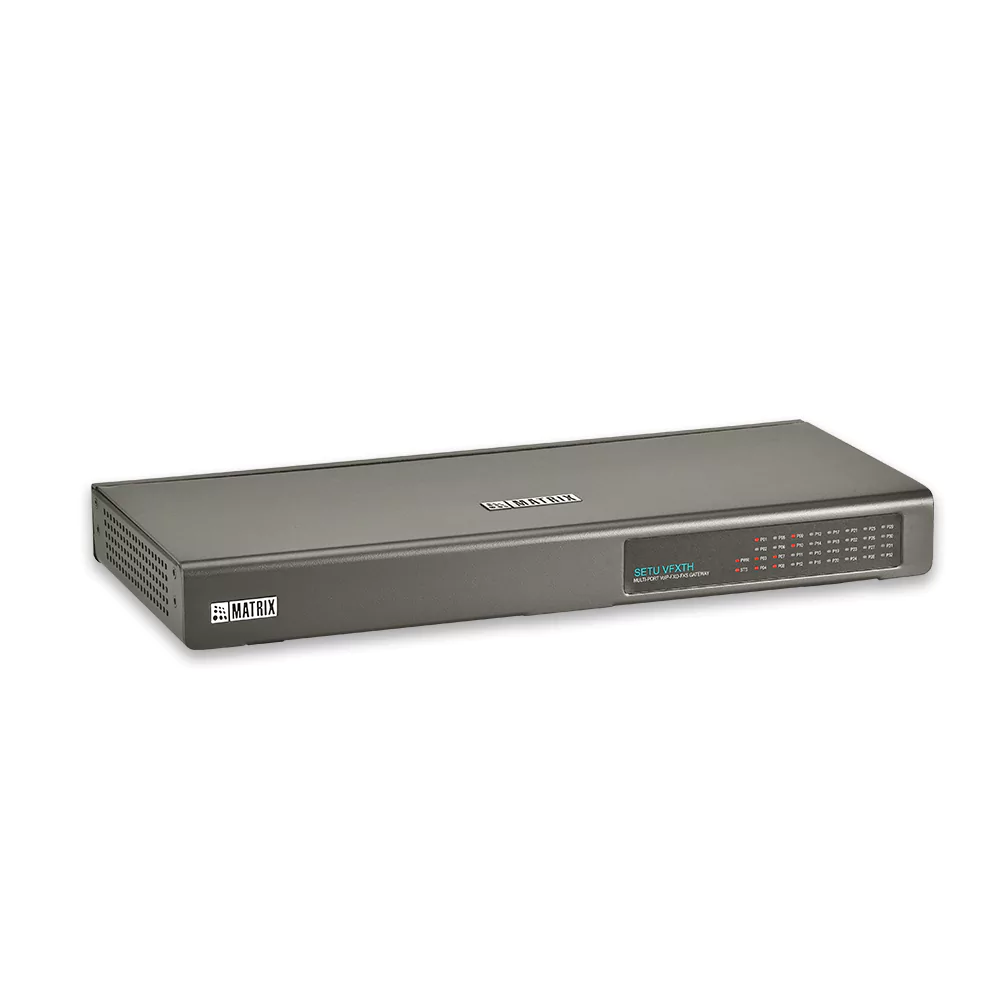

The Matrix SETU VFXTH0032 is an ultra-high-density 32 FXS 1U rackmount VoIP gateway engineered to integrate 32 analog telephone extensions into IP-PBX systems.
Product Overview
The Matrix SETU VFXTH0032 represents the maximum density 32-port FXS gateway in the SETU VFXTH series. Housed in a standard 1U 19-inch rackmount chassis, it connects 32 analog extensions directly to IP communications platforms, saving immense rack space and cabling complexity. Featuring enterprise DSP processing, 32 simultaneous VoIP call capacity, G.168 line echo cancellation, and T.38 real-time faxing, the SETU VFXTH0032 is the ultimate solution for large hotel properties and multi-story office buildings.
Why Buy This Product
Maximum 32 FXS Port Density
Connects 32 analog extensions in a single 1U 19-inch rack unit.
Large Resort & Hotel Solution
Interconnects 32 guest room telephone lines with IP hospitality PBX servers.
Industrial Power Resilience
Built-in surge and lightning protection on all 32 FXS line ports.
Best for These Applications
Large Hotels & Resorts
Connecting multi-floor analog guest room phones to centralized IP voice servers.
Enterprise Server Rooms
Replacing bulky legacy PBX chassis with compact 1U IP FXS gateways.
Government & Institutional
Offices requiring large blocks of secure analog extension lines.
Key Advantages
- 32 Concurrent Call DSPs:Guarantees zero call blocking or voice degradation during peak usage.
- 3 km Long Loop Line Drive:Drives analog extension wiring up to 3 km across large sites.
- TLS/SRTP Security:Encrypts voice payload and signaling to guard against eavesdropping.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 3.6 |
| Shipping Weight | 4.1 |
| Fxo Ports | 0 |
| Fxs Ports | 32 |
| Gsm Channels | 0 |
| Pri Ports | 0 |
| Voip Channels | 32 |
| Sim Card Slots | 0 |
| Sip Accounts | 32 |
| Voip Protocols | SIP v2 (RFC3261), SDP, RTP, RTCP |
| Audio Codecs | G.711a/u, G.729A, G.723.1, iLBC |
| Fax Support | T.38 Real-Time Fax Relay & Pass-Through |
| Dtmf Modes | In-Band, RFC2833, SIP INFO |
| Echo Cancellation | G.168 Line Echo Cancellation (128ms) |
| Ethernet Ports | 2 x 10/100/1000 Mbps RJ45 Gigabit Ethernet Ports |
| Network Protocols | IPv4, DHCP, PPPoE, VLAN 802.1Q, STUN |
| Security Protocols | TLS 1.2, SRTP, HTTPS, Digest Authentication |
| Call Routing Features | FXS-to-SIP Outbound, SIP-to-FXS Inbound, Flexible Digit Mapping, MWI Support |
| Power Supply | 100-240V AC (50/60Hz) Internal Power Supply |
| Power Consumption | 40W Maximum |
| Mounting Form Factor | 1U 19-inch Rackmount Chassis |
| Dimensions | 440 x 240 x 44 mm |
| Operating Temperature | 0°C to 45°C |
| Certifications | CE, FCC, TEC, RoHS |
| Stock | 8 |
