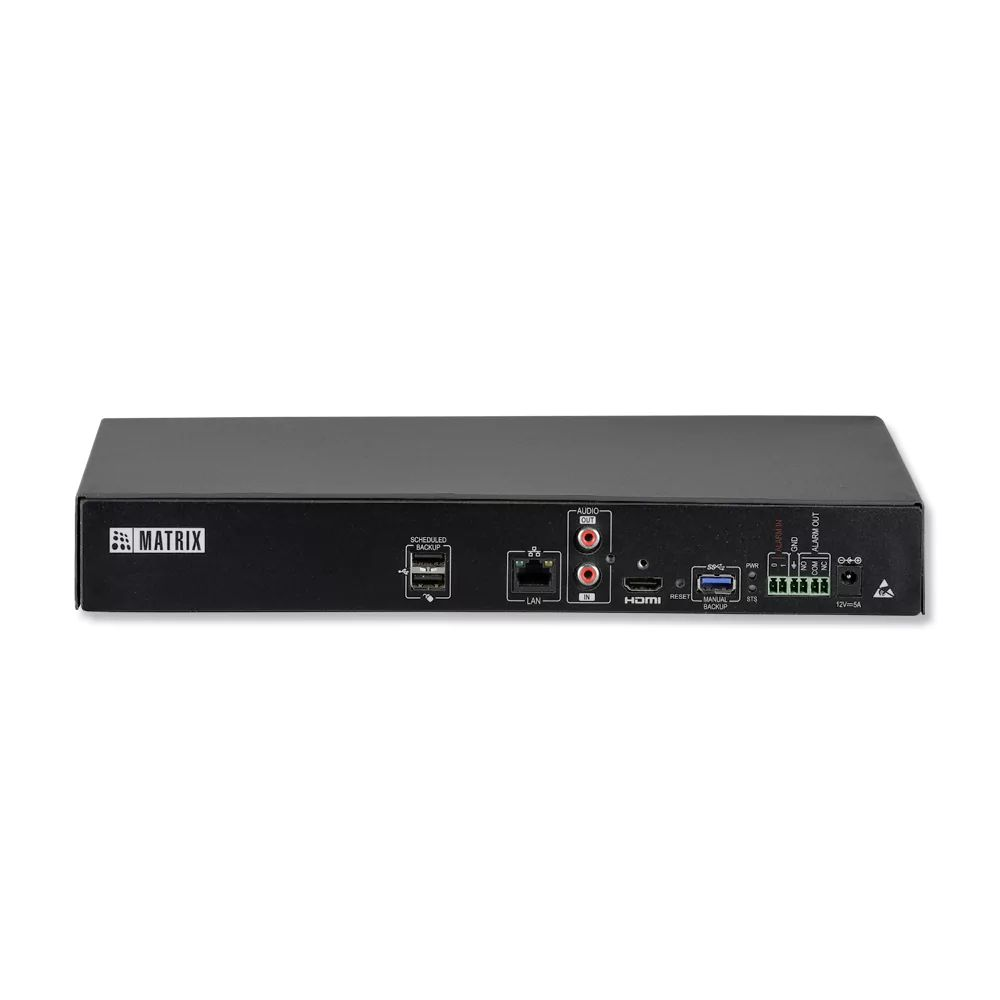

Matrix 16 Channel Extreme Series NVR with 1 SATA Port
16 IP Channels | 1 SATA Bay (18TB Max) | H.265 Decoding | 180Mbps Throughput | 4K UHD
High-density 16-channel network video recorder (SATATYA PARAM NVR1601X) with 180 Mbps processing bandwidth, 1 SATA bay supporting 18TB HDDs, 4K HDMI video display, and H.265 compression format.
Product Overview
Designed for sites requiring up to 16 camera connections in a compact footprint, the SATATYA PARAM NVR1601X combines 16-channel recording with 180 Mbps throughput. It provides dual local video outputs (4K HDMI and VGA), native smart analytics, and mobile app monitoring for commercial security managers.
Why Buy This Product
16-Channel Density
Doubles camera capacity over 8-channel models within the same 1U space saving installation budget.
Smart Storage Retention
Intelligent motion-triggered recording modes maximize retention days on a single 18TB hard disk.
Best for These Applications
Schools & Educational Facilities
Provides centralized monitoring across classrooms, corridors, and campus perimeters.
Logistics Hubs & Depots
Keeps continuous 4K evidence logs of loading bays, packaging zones, and gate entries.
Key Advantages
- Dual Display Output:Simultaneously feed local 4K monitors and security desk VGA screens without external splitters.
- Centralized Remote App:Monitor live streams and search archives remotely via Matrix SATATYA VISION mobile app.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 3.5 |
| Shipping Weight | 4.5 |
| Category Page Featured | Yes |
| Channels | 16 |
| Poe Ports | 0 |
| Hdd Bays | 1 |
| Max Storage T B | 18 |
| Max Storage Per Bay T B | 18 |
| Decoding Capability | 4K UHD (3840 x 2160) |
| Throughput Mbps | 180 |
| Incoming Bandwidth Mbps | 180 |
| Outgoing Bandwidth Mbps | 180 |
| Series | PARAM |
| Max Camera Resolution M P | 8 |
| Video Compression | H.265, H.264, Motion JPEG |
| Audio Compression | G.711u, G.711a, AAC |
| Video Outputs | 1x HDMI (4K), 1x VGA (1080p) |
| Network Interfaces | 1x Gigabit RJ-45 Ethernet Port (10/100/1000 Mbps) |
| Usb Ports | 1x USB 3.0, 1x USB 2.0 |
| Alarm Input Output | 2 Inputs / 1 Output |
| Audio Input Output | 1x RCA Input / 1x RCA Output |
| Vms Integration | Matrix SATATYA SAMAS & ONVIF Profile S/G/T |
| Cascading Support | Up to 20 NVRs without server |
| Smart Analytics | Motion Detection, Tripwire, Intrusion Detection, Missing Object |
| Power Source | 12VDC, 3.3A Power Adapter |
| Power Consumption Watts | 15W (Without HDD) |
| Rack Mountable | Yes |
| Form Factor | 1U Compact Rackmount |
| Dimensions | 300 x 220 x 44 mm |
| Operating Temperature | 0°C to +50°C |
| Stock | 4 |
