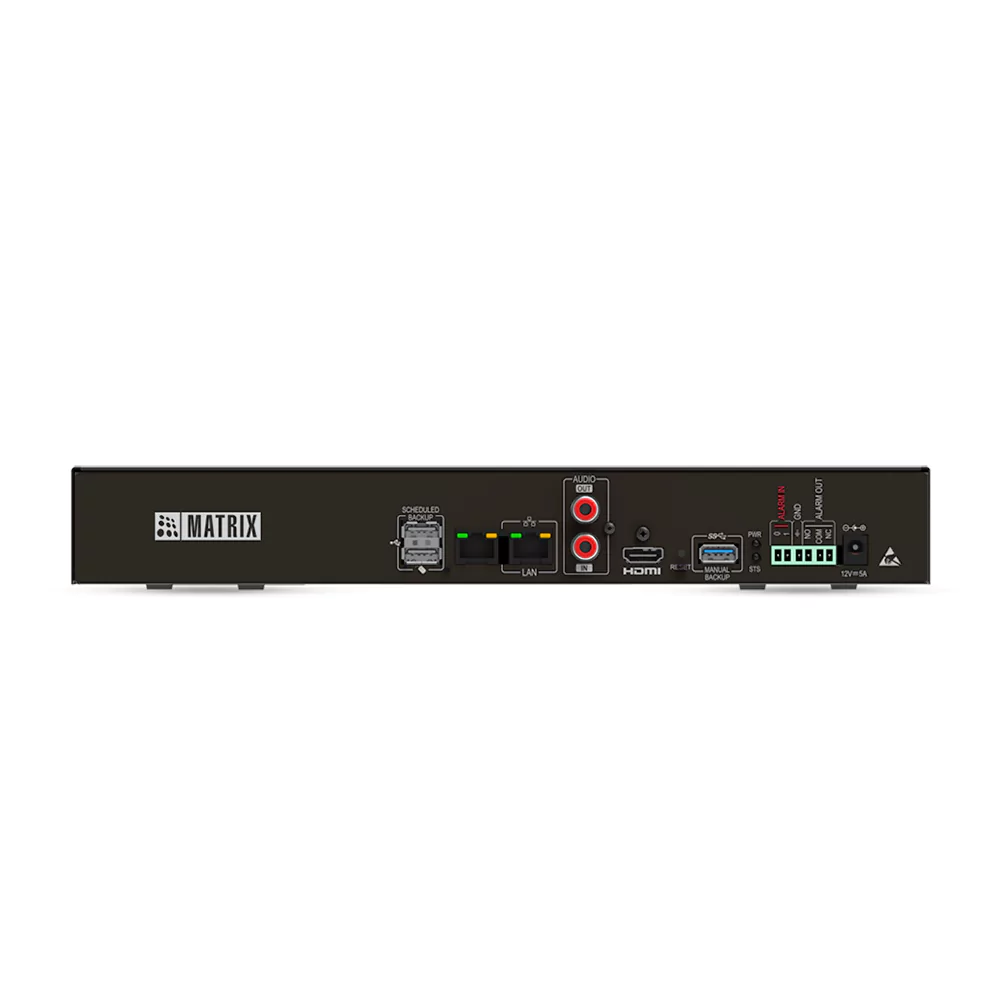

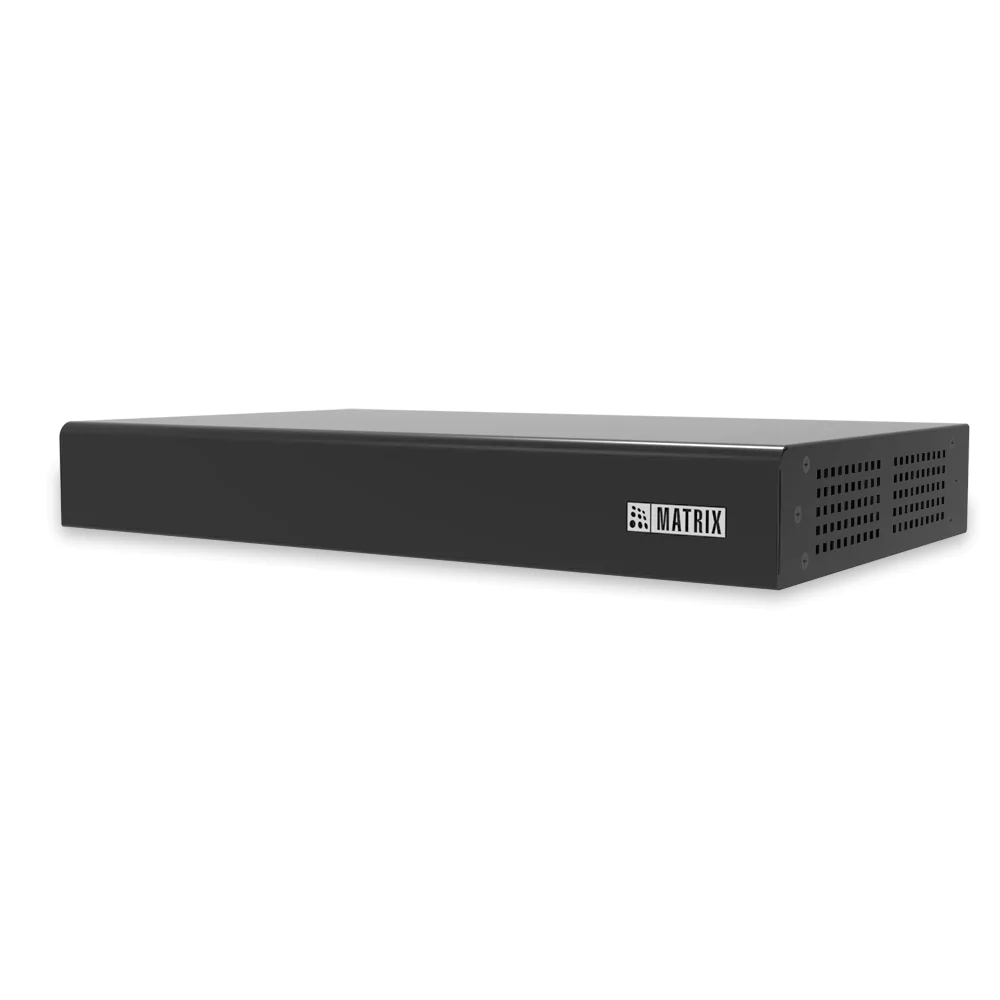

Matrix 32 Channel Extreme Series NVR with 2 SATA Ports
32 IP Channels | 2 SATA Bays (36TB Max) | RAID 0/1 | 512Mbps Throughput | 4K UHD HDMI
High-throughput 32-channel network video recorder (SATATYA PARAM NVR3202X) with 512 Mbps system processing rate, 2 SATA drive bays (36TB max), RAID 0/1 data protection, and 4K UHD video rendering.
Product Overview
The SATATYA PARAM NVR3202X scales security coverage to 32 IP camera channels while maintaining a streamlined 1U form factor. Equipped with 512 Mbps system throughput, dual Gigabit Ethernet ports, and 36TB maximum storage support, it manages multi-zone commercial and industrial facilities with ease.
Why Buy This Product
32 Camera Scalability
Manages comprehensive multi-room and outdoor perimeter security from a single recording core.
Full-Rate 512Mbps Engine
Ensures smooth live viewing and high-bitrate recording across all 32 camera channels concurrently.
Best for These Applications
Commercial Office Towers
Monitors elevator lobbies, parking structures, floor entrances, and perimeter access gates.
Shopping Malls & Outlets
Delivers continuous surveillance over public thoroughfares, escalators, and service loading bays.
Key Advantages
- Smart Event Search: Quickly locate critical footage by filtering archives by motion zone, line crossing, or tamper alarms.
- Multi-User Role Management: Assign tailored view and playback permissions for security guards, managers, and system administrators.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 4.2 |
| Shipping Weight | 5.2 |
| Channels | 32 |
| Poe Ports | 0 |
| Hdd Bays | 2 |
| Max Storage T B | 36 |
| Max Storage Per Bay T B | 18 |
| Decoding Capability | 4K UHD (3840 x 2160) |
| Throughput Mbps | 512 |
| Incoming Bandwidth Mbps | 512 |
| Outgoing Bandwidth Mbps | 512 |
| Series | PARAM |
| Max Camera Resolution M P | 12 |
| Video Compression | H.265, H.264, Motion JPEG |
| Audio Compression | G.711u, G.711a, AAC |
| Video Outputs | 1x HDMI (4K 3840x2160), 1x VGA (1080p) |
| Network Interfaces | 2x Gigabit RJ-45 Ethernet Ports (10/100/1000 Mbps) |
| Raid Support | RAID 0, RAID 1 |
| Usb Ports | 1x USB 3.0, 2x USB 2.0 |
| Alarm Input Output | 4 Inputs / 2 Outputs |
| Audio Input Output | 1x RCA Input / 1x RCA Output |
| Vms Integration | Matrix SATATYA SAMAS Native VMS & ONVIF Profile S/G/T |
| Cascading Support | Up to 20 NVRs without server |
| Smart Analytics | Motion Detection, Tripwire, Intrusion Detection, Missing Object |
| Power Source | 100-240VAC Internal Power Supply |
| Power Consumption Watts | 25W (Without HDD) |
| Rack Mountable | Yes |
| Form Factor | 1U Standard Rackmount |
| Dimensions | 440 x 290 x 44 mm |
| Operating Temperature | 0°C to +50°C |
