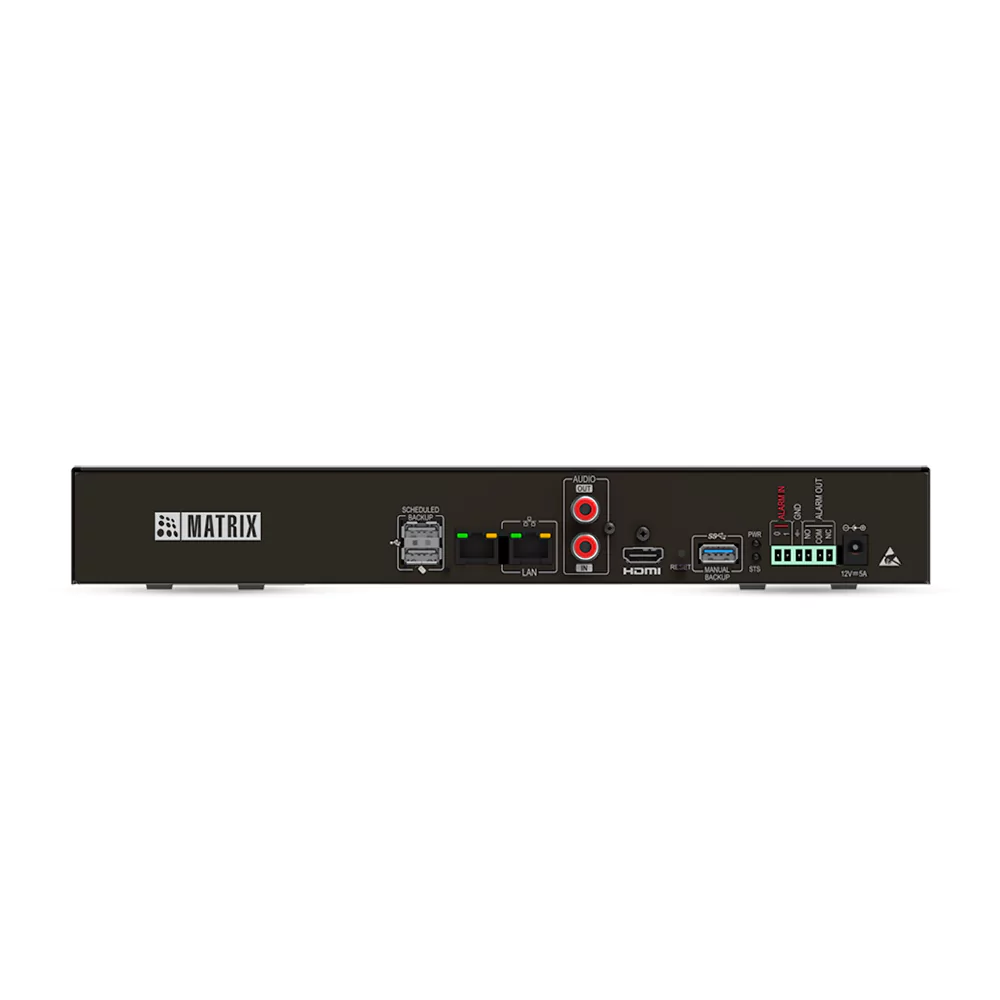

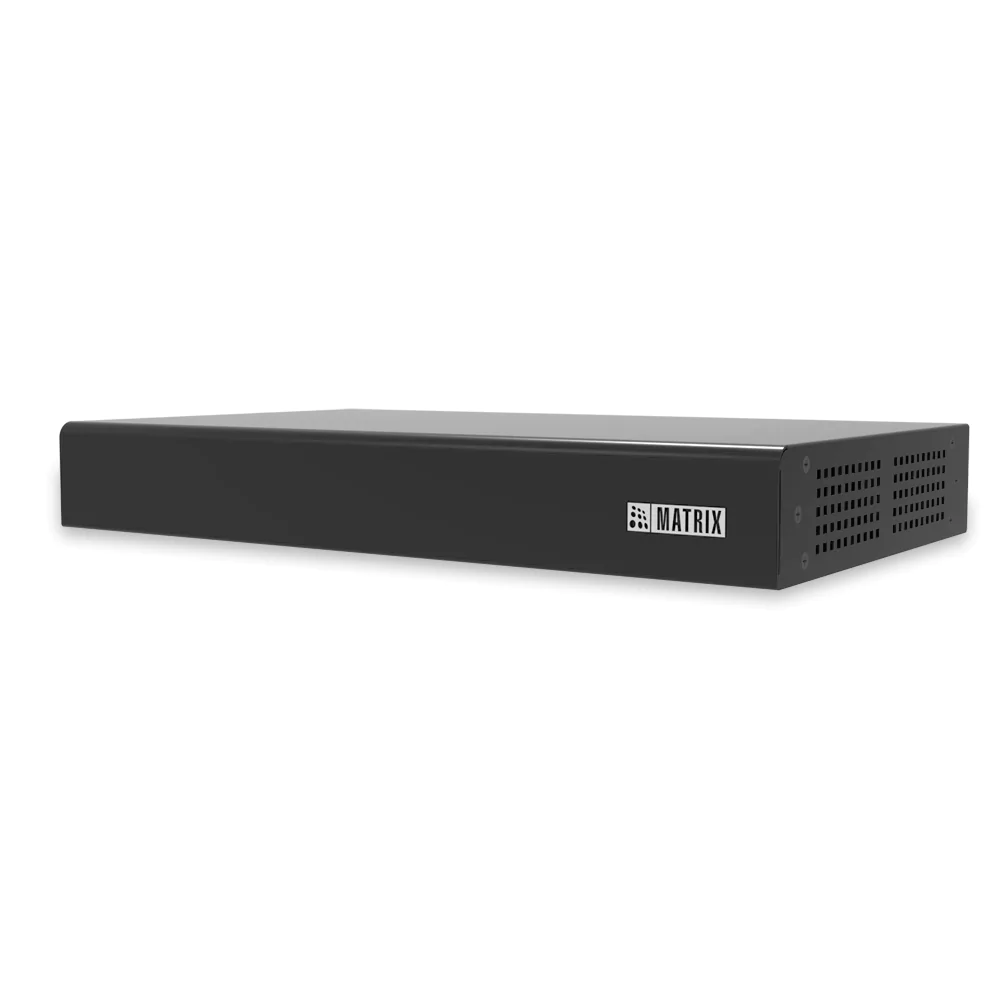

Matrix 16 Channel Extreme Series NVR with 2 SATA Ports
16 IP Channels | 2 SATA Bays (36TB Max) | RAID 0/1 | 512Mbps Throughput | Dual Gigabit LAN
Enterprise 16-channel NVR (SATATYA PARAM NVR1602X) featuring 512 Mbps system throughput, 2 SATA HDD bays supporting 36TB total storage, RAID 0/1 data protection, and dual Gigabit network interfaces.
Product Overview
Built for mission-critical video surveillance environments, the SATATYA PARAM NVR1602X offers dual SATA HDD slots for up to 36TB capacity alongside RAID 1 storage mirroring. Powered by a 512 Mbps system throughput engine and dual Gigabit LAN ports, it guarantees fault-tolerant recording for medium enterprise facilities.
Why Buy This Product
RAID 1 Redundancy
Protects critical surveillance footage against hard drive loss by writing identical video copies across 2 disks.
512 Mbps Throughput
Ultra-high bus bandwidth handles high megapixel 4K streams with zero packet dropping.
Dual Network Ports
Isolate camera network traffic from internal office LAN to prevent network congestion.
Best for These Applications
Bank Branches & Vaults
Meets financial security regulations requiring redundant local storage and high bitrate recording.
Hospitals & Medical Centers
Provides 24/7 continuous evidence tracking across emergency rooms, pharmacy stores, and corridors.
Key Advantages
- 36TB Maximum Storage Capacity:Accommodates two 18TB enterprise surveillance hard drives for extended archive retention periods.
- Network Failover:Dual Gigabit ports automatically switch traffic to the secondary network interface if the primary link goes offline.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 4.2 |
| Shipping Weight | 5.2 |
| Channels | 16 |
| Poe Ports | 0 |
| Hdd Bays | 2 |
| Max Storage T B | 36 |
| Max Storage Per Bay T B | 18 |
| Decoding Capability | 4K UHD (3840 x 2160) |
| Throughput Mbps | 512 |
| Incoming Bandwidth Mbps | 512 |
| Outgoing Bandwidth Mbps | 512 |
| Series | PARAM |
| Max Camera Resolution M P | 12 |
| Video Compression | H.265, H.264, Motion JPEG |
| Audio Compression | G.711u, G.711a, AAC |
| Video Outputs | 1x HDMI (4K 3840x2160), 1x VGA (1080p) |
| Network Interfaces | 2x Gigabit RJ-45 Ethernet Ports (10/100/1000 Mbps) |
| Raid Support | RAID 0, RAID 1 |
| Usb Ports | 1x USB 3.0, 2x USB 2.0 |
| Alarm Input Output | 4 Inputs / 2 Outputs |
| Audio Input Output | 1x RCA Input / 1x RCA Output |
| Vms Integration | Matrix SATATYA SAMAS Native VMS & ONVIF Profile S/G/T |
| Cascading Support | Up to 20 NVRs without server |
| Smart Analytics | Motion Detection, Tripwire, Intrusion Detection, Loitering, Object Left/Removed |
| Power Source | 100-240VAC Internal Power Supply |
| Power Consumption Watts | 25W (Without HDD) |
| Rack Mountable | Yes |
| Form Factor | 1U Standard Rackmount |
| Dimensions | 440 x 290 x 44 mm |
| Operating Temperature | 0°C to +50°C |
| Stock | 4 |
