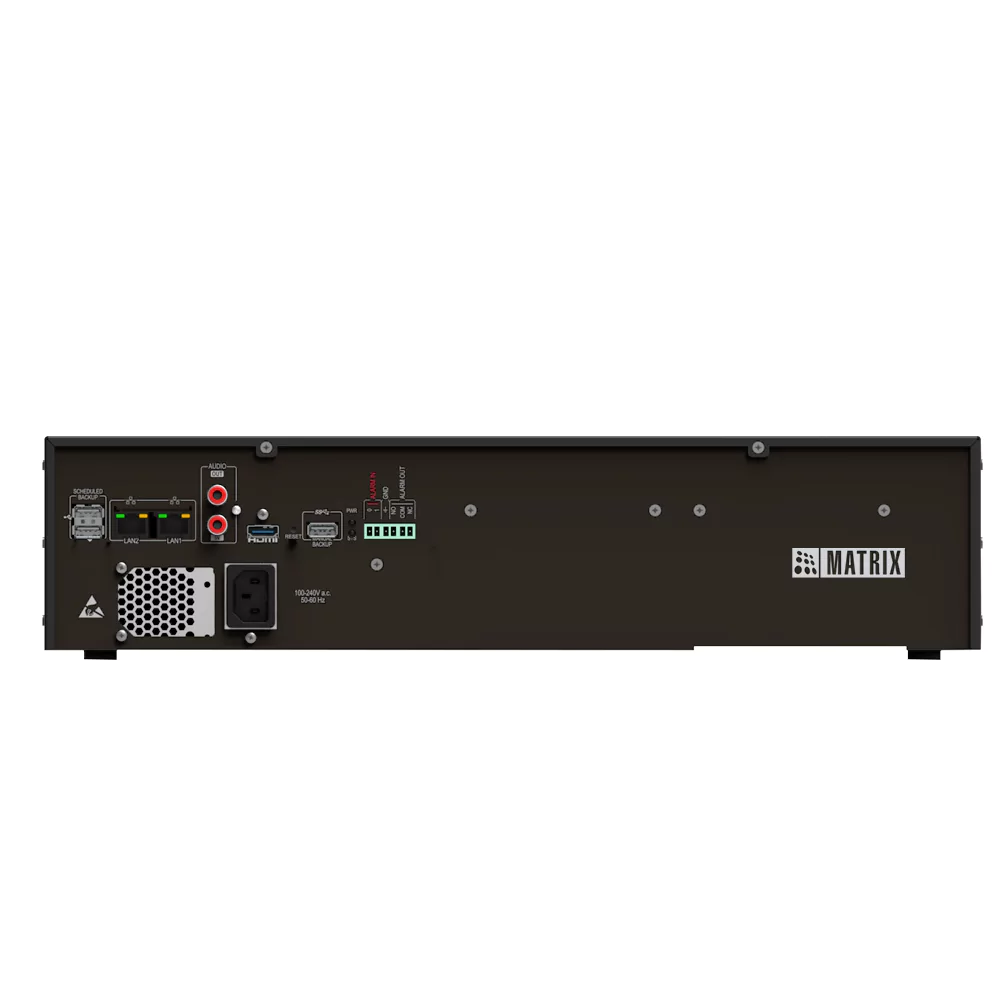

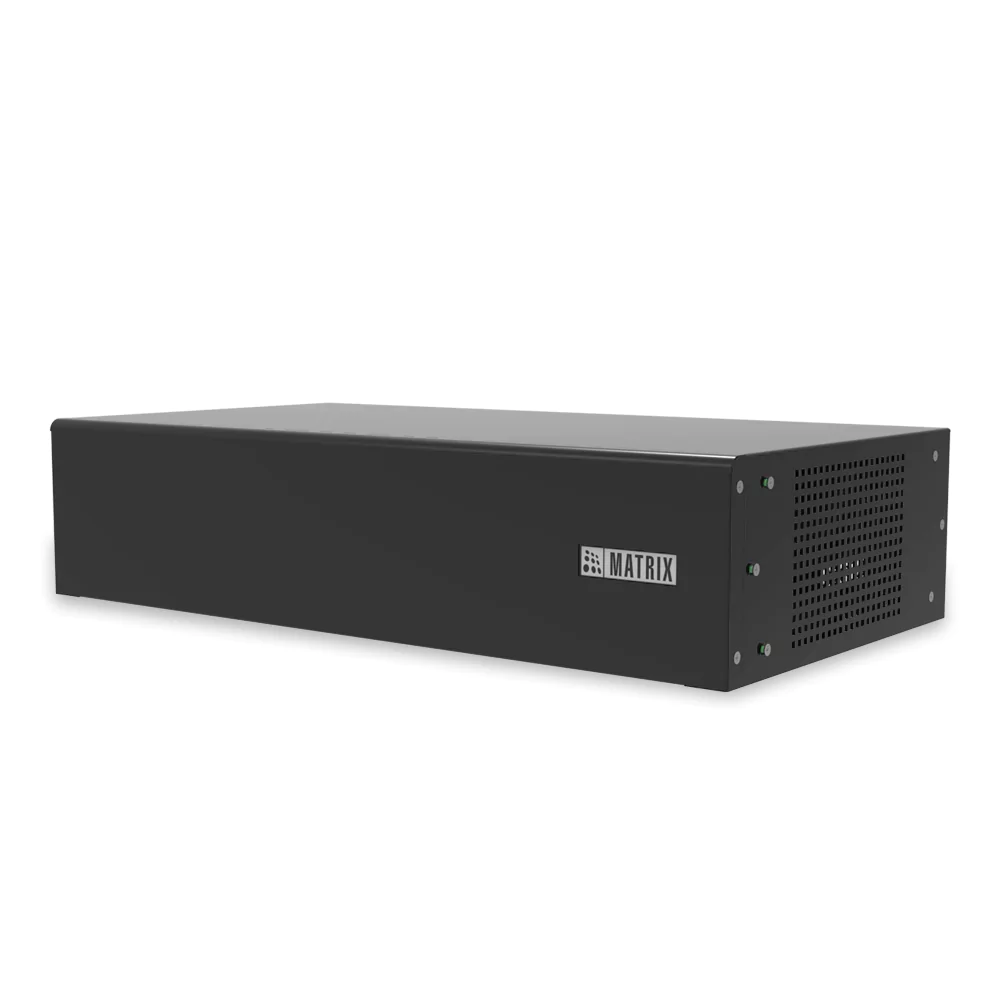

Matrix 64 Channel Extreme Series NVR with 4 SATA Ports
64 IP Channels | 4 SATA Bays (72TB Max) | RAID 0/1/5/10 | 512Mbps Throughput | Dual 4K HDMI
High-density 64-channel network video recorder (SATATYA PARAM NVR6404X) offering 512 Mbps system throughput, 4 SATA slots (72TB max), dual concurrent 4K HDMI displays, and RAID 0/1/5/10 protection.
Product Overview
Capable of handling 64 IP camera streams in enterprise surveillance deployments, the SATATYA PARAM NVR6404X delivers 512 Mbps system throughput, dual 4K HDMI outputs, and 4 SATA HDD bays holding up to 72TB storage. Its hardware RAID engine guarantees high-speed read/write performance and data fault tolerance.
Why Buy This Product
Dual 4K Monitor Feeds
Outputs two independent 4K HDMI streams allowing dual-screen video wall operation.
64-Camera Processing Core
Centralizes large campus surveillance into a single compact rackmount unit.
Best for These Applications
Enterprise Campuses
Provides centralized multi-building surveillance across academic, government, or corporate complexes.
Airports & Transit Terminals
Monitors passenger halls, baggage handling zones, and perimeter fences continuously.
Key Advantages
- Concurrent 4K Output:Display live grid view on primary monitor while performing search and playback on secondary screen.
- ONVIF Profile T Support:Enables advanced features like H.265 streaming and audio analytics from multi-brand IP cameras.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 6 |
| Shipping Weight | 7.2 |
| Channels | 64 |
| Poe Ports | 0 |
| Hdd Bays | 4 |
| Max Storage T B | 72 |
| Max Storage Per Bay T B | 18 |
| Decoding Capability | 4K UHD (3840 x 2160) |
| Throughput Mbps | 512 |
| Incoming Bandwidth Mbps | 512 |
| Outgoing Bandwidth Mbps | 512 |
| Series | PARAM |
| Max Camera Resolution M P | 12 |
| Video Compression | H.265, H.264, Motion JPEG |
| Audio Compression | G.711u, G.711a, AAC |
| Video Outputs | 2x HDMI (4K Concurrent), 1x VGA (1080p) |
| Network Interfaces | 2x Gigabit RJ-45 Ethernet Ports (10/100/1000 Mbps) |
| Raid Support | RAID 0, RAID 1, RAID 5, RAID 10 |
| Usb Ports | 1x USB 3.0, 2x USB 2.0 |
| Alarm Input Output | 8 Inputs / 4 Outputs |
| Audio Input Output | 1x RCA Input / 1x RCA Output |
| Vms Integration | Matrix SATATYA SAMAS Native VMS & ONVIF Profile S/G/T |
| Cascading Support | Up to 20 NVRs without server |
| Smart Analytics | Motion Detection, Tripwire, Intrusion Detection, Object Removed, Crowd Density |
| Power Source | 100-240VAC Internal Power Supply |
| Power Consumption Watts | 40W (Without HDD) |
| Rack Mountable | Yes |
| Form Factor | 1.5U Standard Rackmount |
| Dimensions | 440 x 390 x 66 mm |
| Operating Temperature | 0°C to +50°C |
| Stock | 9 |
