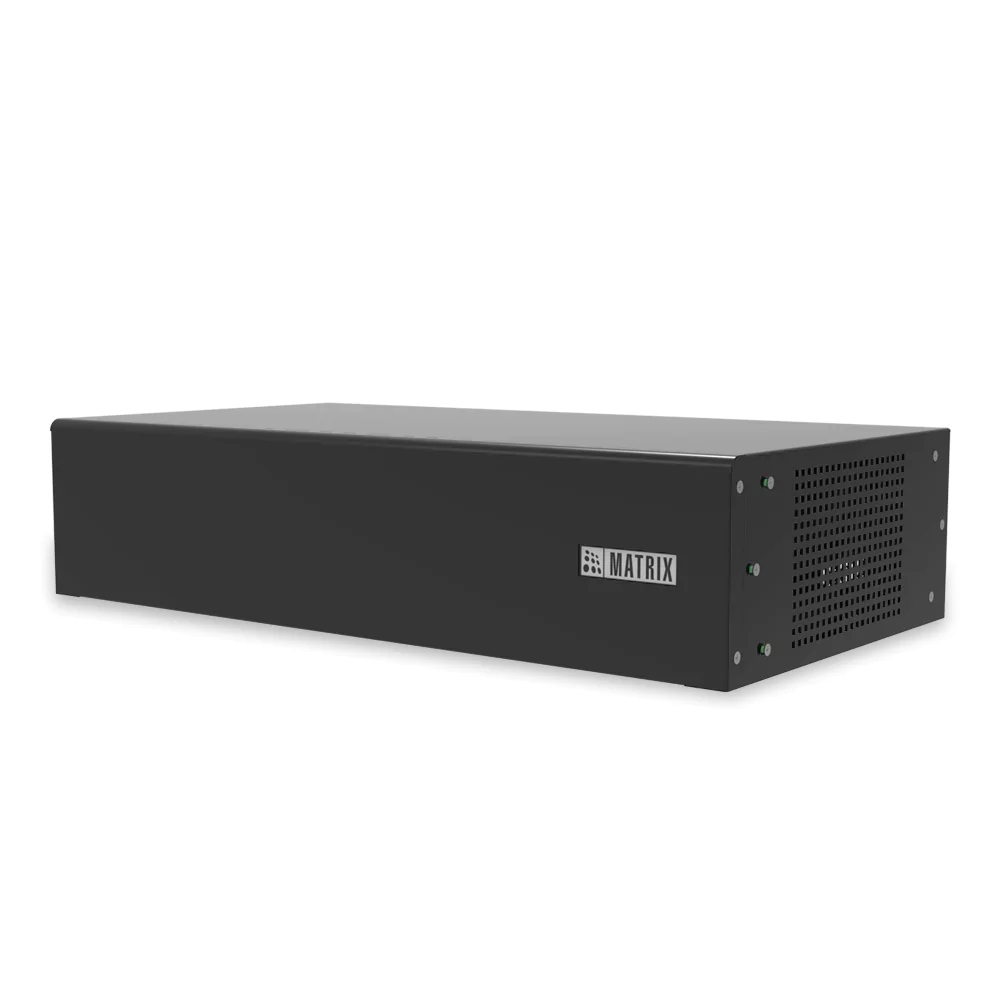

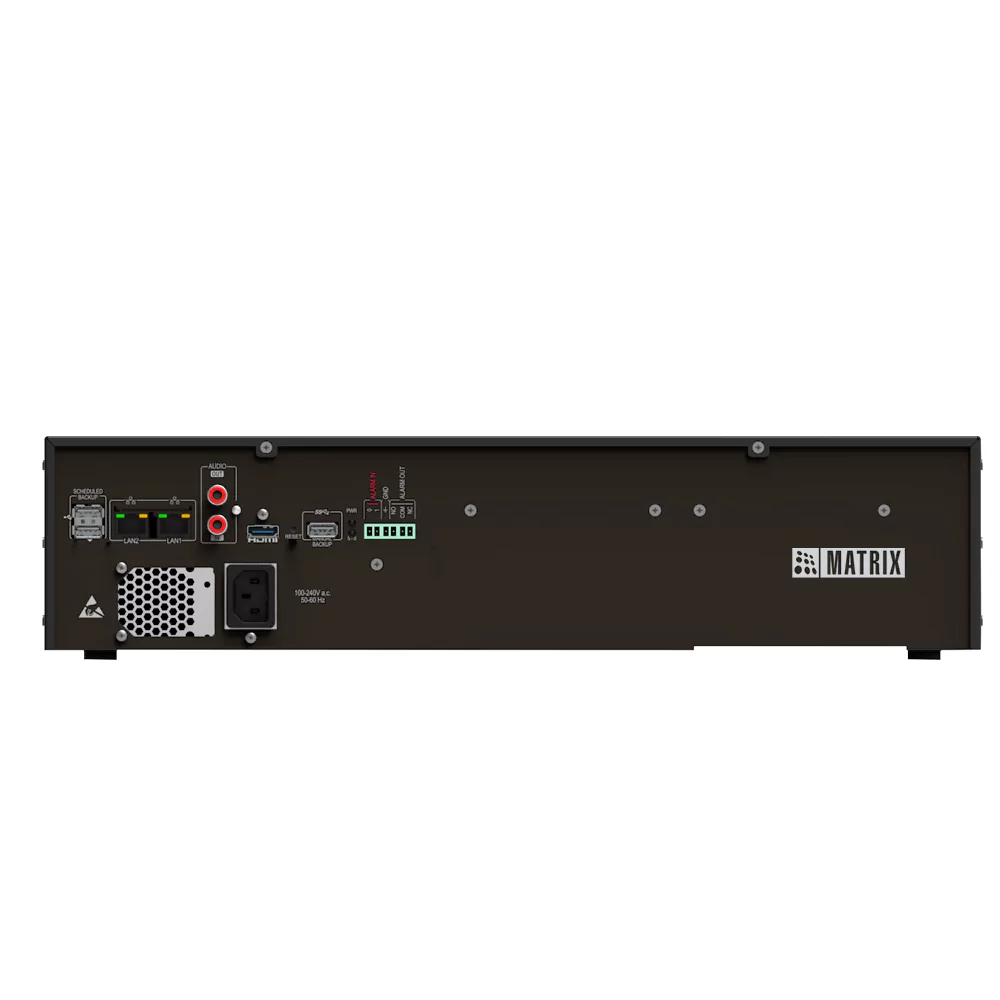

Matrix 32 Channel Extreme Series NVR with 4 SATA Ports
32 IP Channels | 4 SATA Bays (72TB Max) | Hardware RAID 0/1/5/10 | 512Mbps Throughput | Hot-Swap
Expanded storage 32-channel NVR (SATATYA PARAM NVR3204X) equipped with 4 SATA bays (72TB max storage), hardware RAID 0/1/5/10 disk protection, 512 Mbps system throughput, and hot-swappable HDD bays.
Product Overview
Engineered for enterprise security setups demanding extended video retention and data protection, the SATATYA PARAM NVR3204X provides 4 SATA drive bays holding up to 72TB storage. Equipped with hardware RAID 5/10 rebuild capabilities, hot-swappable drive bays, and 512 Mbps throughput, it safeguards long-term security archives reliably.
Why Buy This Product
72TB Deep Archive Capacity
Four SATA slots provide up to 90 days of continuous recording retention across 32 cameras.
Hardware RAID 5 Protection
Protects video archives against single drive failure with automatic background parity rebuilds.
Hot-Swappable HDD Trays
Replace faulty hard drives on the fly without interrupting ongoing video recording.
Best for These Applications
Manufacturing Plants & Mills
Ensures compliance with long-term video retention policies across production lines and storage yards.
Hotels & Gaming Venues
Maintains high-frame-rate 24/7 video evidence required by local gaming and hospitality authorities.
Key Advantages
- RAID 5 Parity Rebuild:Automatically reconstructs missing video data onto a spare drive upon drive replacement.
- 8 Alarm Inputs & 4 Outputs:Integrate physical perimeter sensors, beam detectors, and external sirens directly into the NVR.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 5.8 |
| Shipping Weight | 7 |
| Channels | 32 |
| Poe Ports | 0 |
| Hdd Bays | 4 |
| Max Storage T B | 72 |
| Max Storage Per Bay T B | 18 |
| Decoding Capability | 4K UHD (3840 x 2160) |
| Throughput Mbps | 512 |
| Incoming Bandwidth Mbps | 512 |
| Outgoing Bandwidth Mbps | 512 |
| Series | PARAM |
| Max Camera Resolution M P | 12 |
| Video Compression | H.265, H.264, Motion JPEG |
| Audio Compression | G.711u, G.711a, AAC |
| Video Outputs | 1x HDMI (4K), 1x VGA (1080p) |
| Network Interfaces | 2x Gigabit RJ-45 Ethernet Ports (10/100/1000 Mbps) |
| Raid Support | RAID 0, RAID 1, RAID 5, RAID 10 |
| Usb Ports | 1x USB 3.0, 2x USB 2.0 |
| Alarm Input Output | 8 Inputs / 4 Outputs |
| Audio Input Output | 1x RCA Input / 1x RCA Output |
| Vms Integration | Matrix SATATYA SAMAS Native VMS & ONVIF Profile S/G/T |
| Cascading Support | Up to 20 NVRs without server |
| Smart Analytics | Motion Detection, Tripwire, Intrusion Detection, Missing Object, Unattended Object |
| Power Source | 100-240VAC Internal Power Supply |
| Power Consumption Watts | 35W (Without HDD) |
| Rack Mountable | Yes |
| Form Factor | 1.5U Standard Rackmount |
| Dimensions | 440 x 390 x 66 mm |
| Operating Temperature | 0°C to +50°C |
| Stock | 9 |
